Same model may have multiple batches, images only for reference.

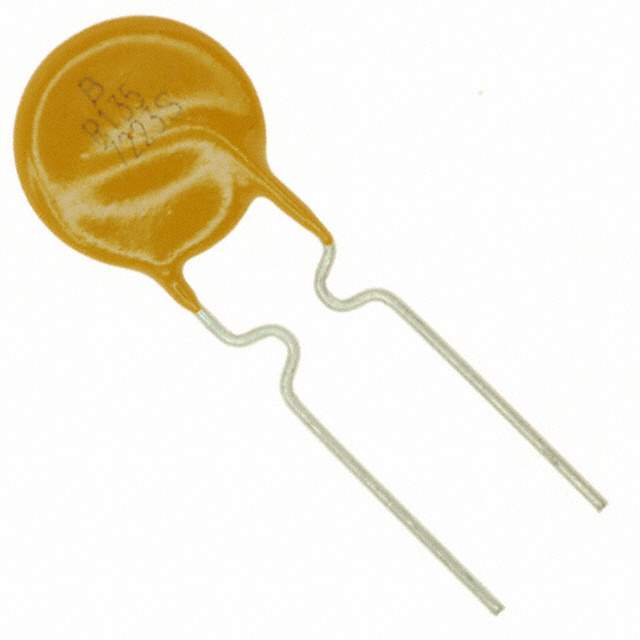

MF-R135 Real Image
Same model may have multiple batches, images only for reference.

MF-R135

Part No MF-R135
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE 1.35A HOLD
Datasheet
MF-R135 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 30V
Current - Max 40A
Current - Hold (Ih) (Max) 1.35A
Current - Trip (It) 2.7A
Time to Trip 7.3s
Resistance - Initial (Ri) (Min) 65 mOhm
Resistance - Post Trip (R1) (Max) 170 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.350" Dia x 0.118" W (8.90mm x 3.00mm)
Height - Seated (Max) 0.744" (18.90mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Win Source Part Number 058459-MF-R135
Ultra Librarian 3D Model Ultra Librarian MF-R135 CAD Model

Description

The Bourns Inc. 058459-MF-R135 is a polymeric type resettable fuse designed for circuit protection.

  • Approvals: cURus and TUV
  • Maximum Voltage: 30V
  • Maximum Current: 40A
  • Mounting: Through-hole
  • Dimension: 0.350" Dia x 0.118" W (8.90mm x 3.00mm)
  • Temperature Range: -40°C to 85°C
  • Resistance: 65 mOhm (initial) and 170 mOhm (post trip)
  • Typical Resistance @ 25°C: None
  • Category: Circuit protection
  • Production Status: Active
  • Supply and Demand Status: Limited
