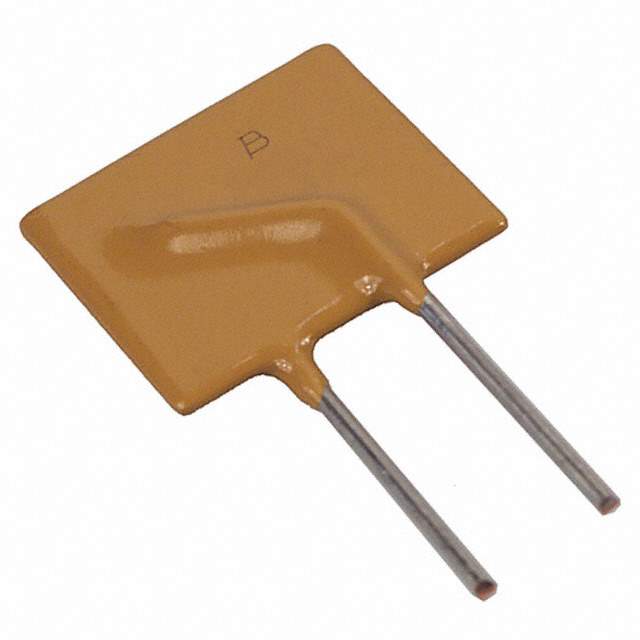

MF-R300-2 Real Image
Same model may have multiple batches, images only for reference.

MF-R300-2

Part No MF-R300-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE
Datasheet
MF-R300-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 30V
Current - Max 40A
Current - Hold (Ih) (Max) 3A
Current - Trip (It) 6A
Time to Trip 10.8s
Resistance - Initial (Ri) (Min) 20 mOhm
Resistance - Post Trip (R1) (Max) 80 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.472" L x 0.118" W (12.00mm x 3.00mm)
Height - Seated (Max) 0.720" (18.30mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Win Source Part Number 003422-MF-R300-2
Ultra Librarian 3D Model Ultra Librarian MF-R300-2 CAD Model

Description

The Bourns Inc. 003422-MF-R300-2 is a polymeric type circuit protection component that is designed to regulate and control the flow of electricity in a circuit.

  • Status: Popular and active
  • Win Source Part Number: 003422-MF-R300-2
  • Approvals: cURus and TUV
  • Maximum Voltage: 30V
  • Maximum Current: 40A
  • Time to Trip: 10.8s
  • Height when seated: 0.720" (18.30mm)
  • Lead spacing: 0.201" (5.10mm)
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.472" L x 0.118" W (12.00mm x 3.00mm)
