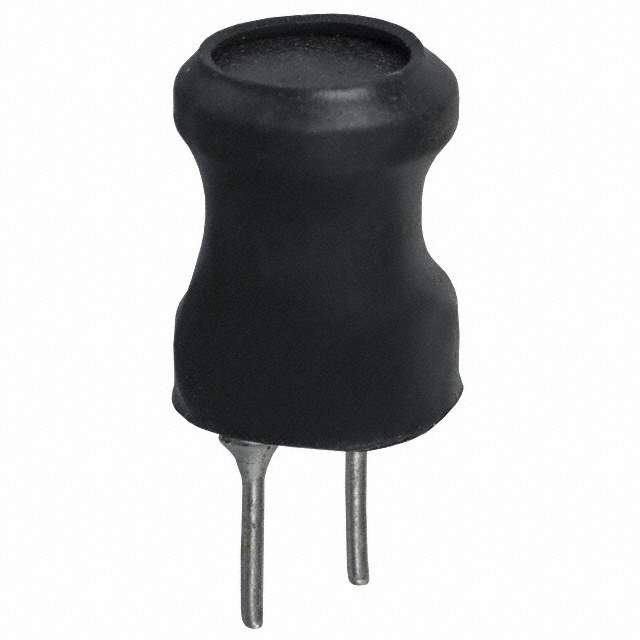

RL622-823K-RC Real Image
Same model may have multiple batches, images only for reference.

RL622-823K-RC

Part No RL622-823K-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 82MH 20MA 212 OHM TH / 82 mH Unshielded Drum Core, Wirewound Inductor 20 mA 212Ohm Max Radial, Vertical Cylinder
Datasheet
RL622-823K-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series RL622
Package Bulk
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 82 mH
Tolerance ±10%
Current Rating (Amps) 20 mA
Shielding Unshielded
DC Resistance (DCR) 212Ohm Max
Q @ Freq 20 @ 79.6kHz
Frequency - Self Resonant 100kHz
Temperature Range - Operating -55°C ~ 105°C
Inductance Frequency - Test 79.6 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Dimension 0.335" Dia (8.50mm)
Height - Seated (Max) 0.433" (11.00mm)
Base Product Number RL622
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names M10028,RL622823KRC
Standard Package 100
Win Source Part Number 1218981-RL622-823K-RC
Ultra Librarian 3D Model Ultra Librarian RL622-823K-RC CAD Model

Description

The RL622-823K-RC is a fixed inductor that belongs to the RL622 series of drum core, wirewound inductors.

  • Type: Unshielded inductor
  • Inductance: 82mH
  • Tolerance: ±10%
  • Operating Temperature Range: -55°C to 105°C
  • DC Resistance: 212Ohm Max
  • Q @ Freq: 20 @ 79.6kHz
  • Frequency of Self-Resonant: 100kHz
  • Mounting: Through hole
  • Package/Case: Radial, vertical cylinder
  • HTSUS: 8504.50.4000.
