Same model may have multiple batches, images only for reference.

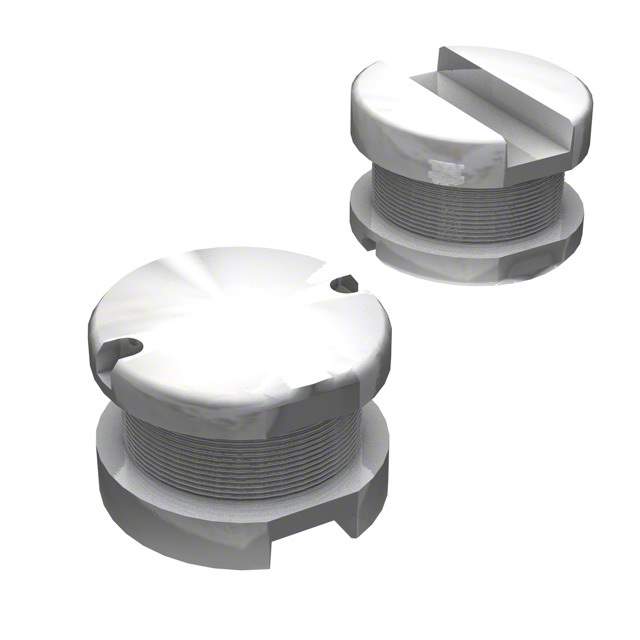

SDR0805-151KL Real Image
Same model may have multiple batches, images only for reference.

SDR0805-151KL

Part No SDR0805-151KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 150UH 580MA 680 MOHM
Datasheet
SDR0805-151KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 150μH
Tolerance ±10%
Current Rating 580mA
Current - Saturation 850mA
DC Resistance (DCR) 680 mOhm Max
Q @ Freq 12 @ 796kHz
Frequency - Self Resonant 6MHz
Temperature Range - Operating -40°C to 125°C
Frequency - Test 1kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.209" (5.30mm)
Win Source Part Number 1095073-SDR0805-151KL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SDR0805-151KL CAD Model

Description

The Bourns Inc. SDR0805-151KL is a surface mount wirewound inductor that is designed to offer high performance and reliability.

  • Manufacturer: Bourns Inc.
  • Product Name: SDR0805-151KL
  • Mounting Type: Surface Mount
  • Inductor Type: Wirewound
  • Current Rating: 580mA
  • Inductance: 150μH
  • Material: Ferrite
  • Height: 0.209" (5.30mm)
  • Tolerance: ±10%
  • DC Resistance (DCR): 680 mOhm Max
  • Frequency Range: 1kHz to 6MHz
  • Q @ Freq: 12 @ 796kHz
  • Temperature Range: -40°C to 125°C
  • Packaging: Reel
