Same model may have multiple batches, images only for reference.

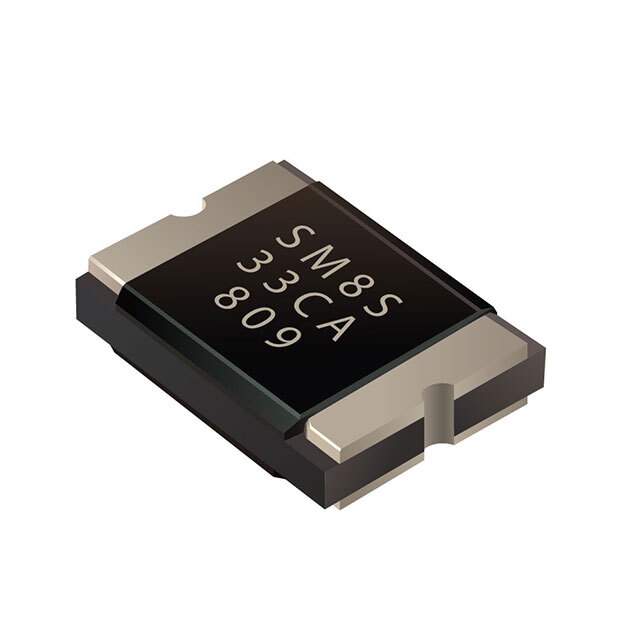

SM8SF33CA-Q Real Image
Same model may have multiple batches, images only for reference.

SM8SF33CA-Q

Part No SM8SF33CA-Q
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Description TVS DIODE 33VWM 53.3VC 2DFN / 53.3V Clamp 131A Ipp Tvs Diode Surface Mount 2-DFN (8.1x10.5)
Datasheet
SM8SF33CA-Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Bourns Inc.
Series Automotive, AEC-Q101, SM8SF-Q
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 33V
Voltage - Breakdown (Min) 36.7V
Voltage - Clamping (Max) @ Ipp 53.3V
Current - Peak Pulse (10/1000µs) 131A
Power - Peak Pulse 7000W (7kW)
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Package / Case 2-LDFN
Supplier Device Package 2-DFN (8.1x10.5)
Base Product Number SM8SF
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Other Names SM8SF33CA-QDKR,SM8SF33CA-QCT,SM8SF33CA-QTR
Standard Package 750
Win Source Part Number 1140689-SM8SF33CA-Q
Ultra Librarian 3D Model Ultra Librarian SM8SF33CA-Q CAD Model

Description

The Bourns Inc. 1140689-SM8SF33CA-Q is a TVS diode with a zener type. The product is part of the SM8SF-Q series and is suitable for automotive applications. The product is packaged in tape and reel and has a bidirectional channel. The product has a reverse standoff voltage of 33V and a breakdown voltage of 36.7V. The product has a clamping voltage of 53.3V @ 131A peak pulse current (10/1000µs). The product has a peak pulse power of 7000W (7kW). The product has a temperature range of -55°C to 175°C (TJ).
