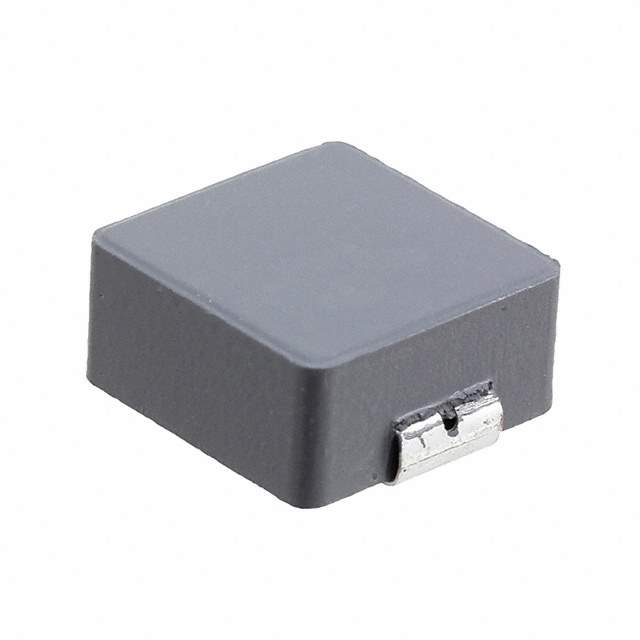

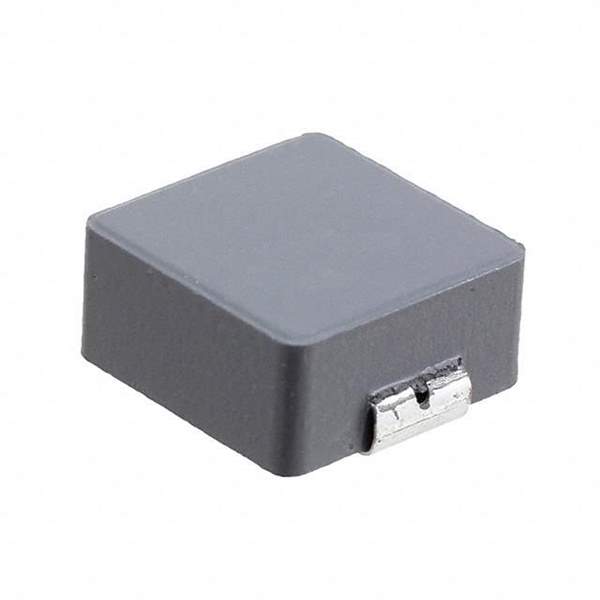

SRP1265A-3R3M Real Image
Same model may have multiple batches, images only for reference.

SRP1265A-3R3M

Part No SRP1265A-3R3M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 3.3UH 18A 6.8 MOHM SMD / Inductor Power Shielded Wirewound 3.3uH 20% 100KHz 20Q-Factor Carbonyl Powder 18A 0.0068Ohm DCR Automotive T/R
Datasheet
SRP1265A-3R3M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Series SRP1265A
Packaging Reel package
Type Wirewound
Material - Core Carbonyl Powder
Inductance 3.3μH
Tolerance ±20%
Current Rating 18A
Current - Saturation 30A
Shielding Shielded
DC Resistance (DCR) 6.8 mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 20MHz
Ratings AEC-Q200
Operating Temperature Range -40°C ~ 150°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Maximum) 0.252" (6.40mm)
Win Source Part Number 795409-SRP1265A-3R3M
Popularity Medium
Supply and Demand Status Limited
Family Name SRP1265A
Introduction Date May 06, 2014
ECCN EAR99
Country of Origin China, Taiwan
Halogen Free Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian SRP1265A-3R3M CAD Model

Description

The SRP1265A-3R3M is a wirewound inductor with a shielded package and a current rating of 18A from Bourns Inc.

  • Inductance: 3.3μH
  • Operating Temperature: -40°C to 150°C
  • Package: non-standard
  • Mounting: surface-mount device (SMD)
  • Tolerance: ±20%
  • Q: 20 @ 100kHz
  • Self-Resonant Frequency: 20MHz
  • AEC-Q200 Rated: Yes
  • Series: SRP1265A
  • ECCN: EAR99
  • Halogen-free: Yes
  • Popularity: medium
  • Supply and Demand Status: limited
