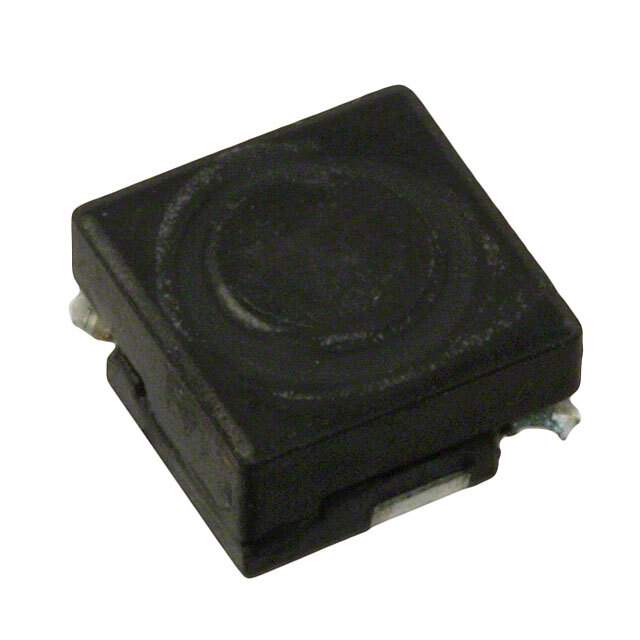

The SRR0603-101KL is a shielded power inductor manufactured by Bourns, Inc. It features a compact 0603 (1608 metric) footprint, a nominal inductance of 100 µH (101), and a tolerance of 10% (K). The L suffix indicates a specific packaging or terminal configuration. This inductor is designed for use in DC-DC converters, power supplies, and other applications where efficient power conversion and noise reduction are critical.

Applications

• DC-DC converters
• Power supplies
• RF Blocking
• EMI Filtering
• Noise filtering in sensitive electronic circuits

Features

• Shielded construction for low EMI
• Compact 0603 package size
• Inductance of 100 µH
• Tolerance of 10%
• High current carrying capacity

Benefits

• Reduces electromagnetic interference (EMI) in sensitive circuits.
• Enables miniaturization of electronic devices.
• Provides efficient power conversion.
• Offers a cost-effective solution for noise reduction.
• Helps meet regulatory compliance requirements for EMI.

Additional Details

The SRR0603-101KL inductor is constructed with a ferrite core and shielded windings to minimize electromagnetic radiation. This shielding is crucial in applications where minimizing interference with other components is essential. The inductor is typically surface-mounted and is designed to withstand reflow soldering processes. Its electrical characteristics, such as saturation current and DC resistance (DCR), are critical parameters to consider during circuit design. The saturation current indicates the current level at which the inductance starts to drop significantly, while the DCR affects the efficiency of the power conversion circuit. Bourns provides detailed datasheets with these specifications to assist engineers in selecting the appropriate inductor for their applications. Its small size allows it to be used in densely populated PCBs and compact electronic devices.
