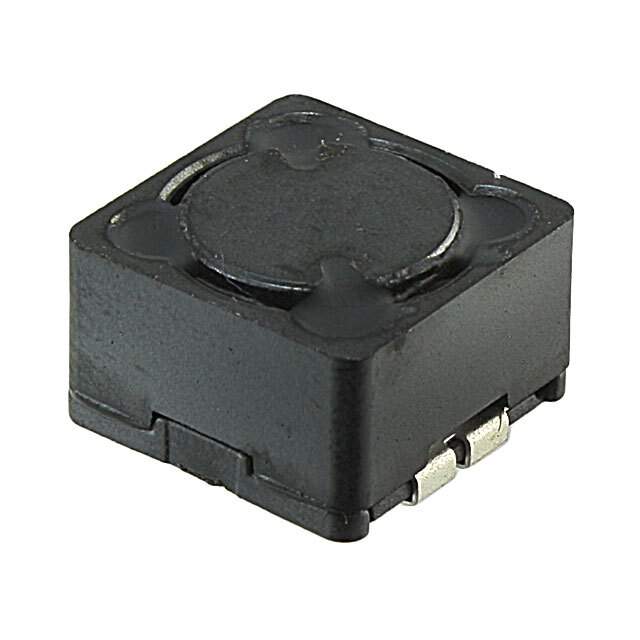

SRR1208-220M Real Image
Same model may have multiple batches, images only for reference.

SRR1208-220M

Part No SRR1208-220M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description Shielded High Power Inductors | FIXED IND 22UH 3.5A 43 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Packaging Tape and Reel
Status Obsolete
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating (Amps) 3.5A
Current - Saturation 4A
Shielding Shielded
DC Resistance (DCR) 43mOhm Max
Q at Freq 23 at 2.52MHz
Frequency - Self Resonant 7MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Maximum) 0.335" (8.50mm)
Family Part Number SRR1208
Manufacturer Pack Quantity 400
MSL Level 1 (Unlimited)
Win Source Part Number 720543-SRR1208-220M
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SRR1208-220M CAD Model

Description

The SRR1208 series inductor from Bourns Inc. is a shielded, wirewound inductor.

  • Inductance: 22µH
  • Tolerance: ±20%
  • DC Resistance: 43mOhm (max)
  • Current Rating: 3.5A
  • Saturation Current: 4A
  • Package Dimensions: 0.500" L x 0.500" W (12.70mm x 12.70mm)
  • Height Seated (max): 0.335" (8.50mm)
  • Material: Ferrite
  • Q @ Freq: 23 @ 2.52MHz
  • Frequency of Self-Resonant: 7MHz
  • Operating Temperature Range: -40°C to 125°C
  • Other Name: SRR1208-220M
