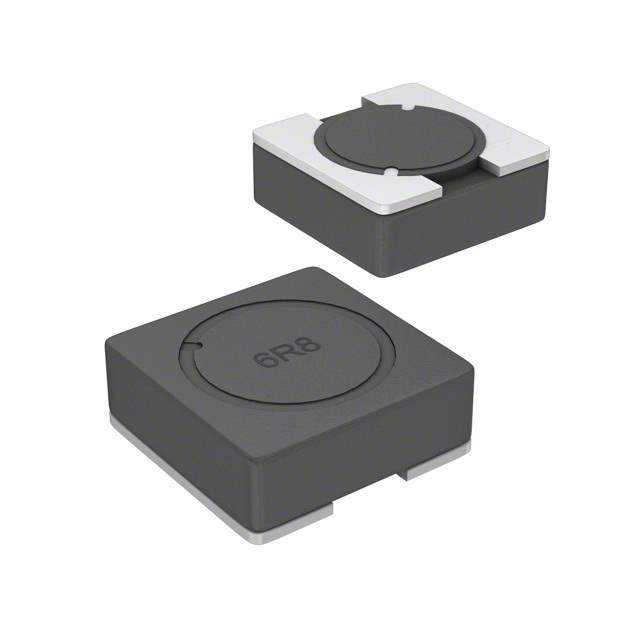

Same model may have multiple batches, images only for reference.

SRR4018-101Y

Name: SRR4018-101Y
Brand: Bourns Inc.
SKU: 1095968
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR4018-101Y
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 100UH 400MA 1.35OHM SM / 100 µH Shielded Drum Core, Wirewound Inductor 400 mA 1.35Ohm Max 1919 (4848 Metric)
Datasheet	SRR4018-101Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR4018
Package	Tape & Reel (TR),Cut Tape (CT)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	100 µH
Tolerance	±30%
Current Rating (Amps)	400 mA
Current - Saturation (Isat)	300mA
Shielding	Shielded
DC Resistance (DCR)	1.35Ohm Max
Q @ Freq	10 @ 796kHz
Frequency - Self Resonant	12MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	1919 (4848 Metric)
Dimension	0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max)	0.079" (2.00mm)
Base Product Number	SRR4018
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	SRR4018-101YTR,-SRR4018-101Y,SRR4018-101YCT,-SRR4018-101YCT,SRR4018101Y,-SRR4018-101YTR,-SRR4018-101Y-ND,SRR4018-101Y-ND
Standard Package	800
Win Source Part Number	1095968-SRR4018-101Y
Ultra Librarian 3D Model	Ultra Librarian SRR4018-101Y CAD Model

Alternative Products

Description

The SRR4018-101Y is a drum core, wirewound inductor from Bourns Inc.

Shielded: Shielded
Package: Tape and reel and cut tape variants
Inductance: 100 µH
Tolerance: ±30%
Core Material: Ferrite
Q Value: 10 @ 796 kHz
Frequency of Self-Resonance: 12 MHz
DC Resistance (DCR): 1.35 Ohm Max
Current Rating: 400 mA
Temperature Range: -40°C to 125°C
Dimensions: 0.189" L x 0.189" W (4.80mm x 4.80mm)
