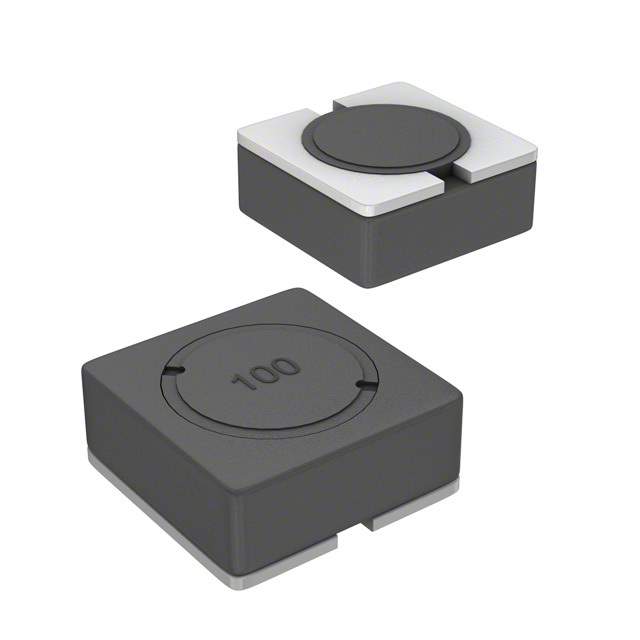

Same model may have multiple batches, images only for reference.

SRR6028-680Y

Name: SRR6028-680Y
Brand: Bourns Inc.
SKU: 1000646
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR6028-680Y
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 68UH 800MA 300MOHM SMD / 68 µH Shielded Drum Core, Wirewound Inductor 800 mA 300mOhm Max Nonstandard
Datasheet	SRR6028-680Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR6028
Package	Tape & Reel (TR),Cut Tape (CT)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	68 µH
Tolerance	±30%
Current Rating (Amps)	800 mA
Current - Saturation (Isat)	600mA
Shielding	Shielded
DC Resistance (DCR)	300mOhm Max
Q @ Freq	11 @ 796kHz
Frequency - Self Resonant	15MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Max)	0.118" (3.00mm)
Base Product Number	SRR6028
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	SRR6028-680YCT,-SRR6028-680YTR,-SRR6028-680YCT,-SRR6028-680Y-ND,SRR6028-680YTR,-SRR6028-680Y,SRR6028-680Y-ND,SRR6028680Y
Standard Package	500
Win Source Part Number	1000646-SRR6028-680Y
Ultra Librarian 3D Model	Ultra Librarian SRR6028-680Y CAD Model

Alternative Products

Description

The Bourns Inc. SRR6028 series inductor is a drum core, wirewound type inductor with an inductance of 68 µH and a tolerance of ±30%.

Manufacturer: Bourns Inc.
Inductance: 68 µH
Tolerance: ±30%
Core Material: Ferrite
Q @ Freq: 11 @ 796kHz
DC Resistance (DCR): 300mOhm Max
Current Rating (Amps): 800 mA
Frequency Self-Resonant: 15MHz
Temperature Range: -40°C to 125°C
Package/Case: Nonstandard
Dimension: 0.268" L x 0.268" W (6.80mm x 6.80mm)
Packaging: Tape and Reel (TR), Cut Tape (CT)
Core Type: Drum Core, Wirewound
