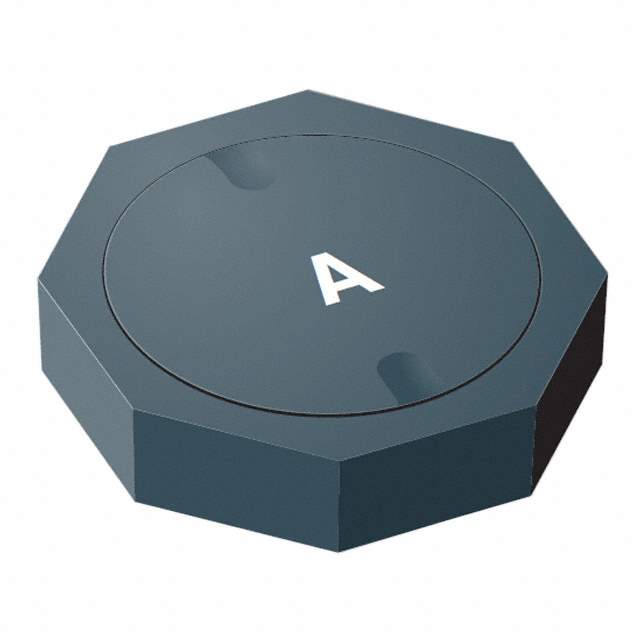

SRU2011-100Y Real Image
Same model may have multiple batches, images only for reference.

SRU2011-100Y

Part No SRU2011-100Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 520MA 740MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 520 mA 740mOhm Max Nonstandard
Datasheet
SRU2011-100Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRU2011
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±30%
Current Rating (Amps) 520 mA
Current - Saturation (Isat) 400mA
Shielding Shielded
DC Resistance (DCR) 740mOhm Max
Q @ Freq 10 @ 2.52MHz
Frequency - Self Resonant 45MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.110" L x 0.110" W (2.80mm x 2.80mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number SRU2011
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 1,500
Win Source Part Number 989465-SRU2011-100Y
Ultra Librarian 3D Model Ultra Librarian SRU2011-100Y CAD Model

Description

The Bourns Inc. SRU2011 series 989465-SRU2011-100Y is a shielded drum core, wirewound inductor with an inductance of 10μH and a tolerance of ±30%.

  • Manufacturer: Bourns Inc.
  • Series: SRU2011
  • Product: 989465-SRU2011-100Y
  • Type: Shielded Drum Core, Wirewound Inductor
  • Inductance: 10μH
  • Tolerance: ±30%
  • Mounting Style: SMD (SMT)
  • Package: Tape & Reel (TR)
  • DC Resistance (DCR): 740mOhm Max
  • Current Rating: 520mA
  • Application: Fixed Inductors
  • Temperature Range: -40°C to 125°C
  • Package/Case: Nonstandard
