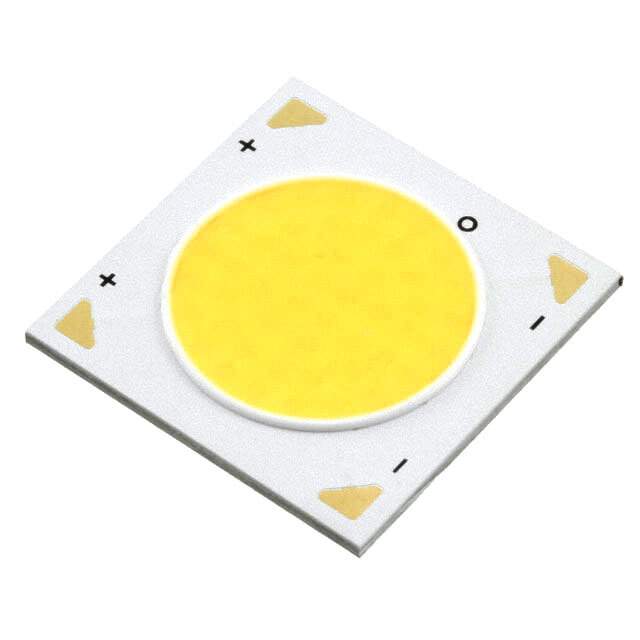

BXRE-40E3001-D-23 Real Image
Same model may have multiple batches, images only for reference.

BXRE-40E3001-D-23

Part No BXRE-40E3001-D-23
Manufacturer Bridgelux
Catalog LED Lighting - COBs, Engines, Modules
Description LED ARRAY 3000LM NEU WHITE COB  /  LED Lighting COBs Engines Modules Chip On Board (COB) series White, Neutral Square
Datasheet
BXRE-40E3001-D-23 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Bridgelux
Series V15 Array
Package Tray
Product Status Obsolete
Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 3372lm (Typ)
Current - Test 700mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 36V
Lumens/Watt @ Current - Test 134 lm/W
Current - Max 1.4A
CRI (Color Rendering Index) 80
Viewing Angle 120°
Dimension 21.00mm L x 21.00mm W
Height 1.70mm
Light Emitting Surface (LES) 15.20mm Dia
Lens Type Flat
Base Product Number BXRE-40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 976-1303
Standard Package 600
Win Source Part Number 1184362-BXRE-40E3001-D-23
Ultra Librarian 3D Model Ultra Librarian BXRE-40E3001-D-23 CAD Model

Description

The V15 Array is a Chip On Board (COB) type electronic component that is ideal for LED Lighting - COBs, Engines, Modules, Strips from Bridgelux.

  • COB Configuration: Square
  • Lens Type: Flat
  • Viewing Angle: 120°
  • Forward Voltage (Vf): 36V (Typ)
  • Maximum Current: 1.4A
  • CCT (K): 4000K 3-Step MacAdam Ellipse
  • Color Rendering Index (CRI): 80
  • Light Emitting Surface (LES): 15.20mm Dia
  • Dimension: 21.00mm L x 21.00mm W
  • Package: Tray
  • Standard Package: 600
  • Status: Obsolete
  • Luminous Flux: 3372lm (Typ) @ current/temperature
