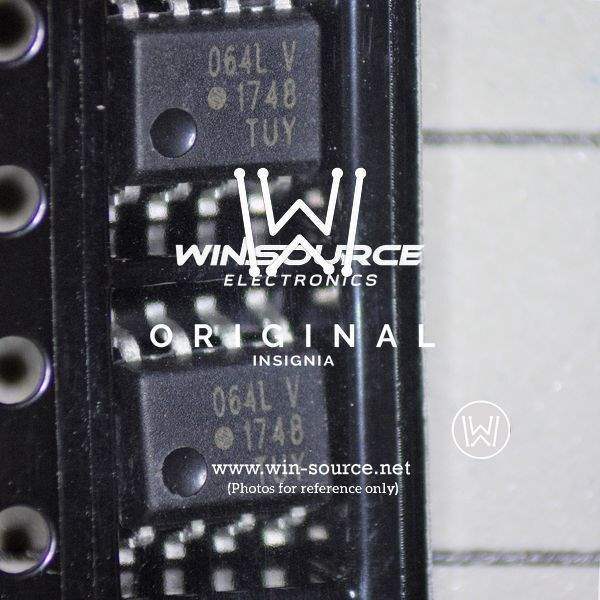

Same model may have multiple batches, images only for reference.

ACPL-064L-560E

Name: ACPL-064L-560E
Brand: Broadcom Limited
SKU: 802476
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ACPL-064L-560E
Manufacturer	Broadcom Limited
Catalog	Optoisolators - Logic Output
Description	OPTOISO 3.75KV 2CH PUSH PULL 8SO / Ultra Low Power 10 MBd Digital CMOS Optocouplers
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Broadcom Limited
Packaging	Reel
Number of Channels	2
Inputs - Side 1/Side 2	2/0
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	20kV/μs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	10mA
Data Rate	10MBd
Propagation Delay tpLH / tpHL (Maximum)	80ns, 80ns
Rise / Fall Time (Typ)	12ns, 12ns
Voltage - Forward (Vf) (Typ)	1.3V
Current - DC Forward (If) (Maximum)	8mA
Supply Voltage (V)	2.7V ~ 5.5V
Temperature Range - Operating	-40°C ~ 105°C
Mounting Style	SMD
Manufacturer Package	8-SOIC
Supplier Device Package	8-SO
Manufacturer Pack Quantity	1,500
MSL Level	1 (Unlimited)
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	802476-ACPL-064L-560E
Ultra Librarian 3D Model	Ultra Librarian ACPL-064L-560E CAD Model

Alternative Products

Description

The ACPL-064L-560E is a product from Broadcom Limited.

Output Type: Push-pull, totem pole
Data Rate: 10MBd
Forward Voltage (Vf): 1.3V
Rise/Fall Time (typ): 12ns, 12ns
Current Output/Channel: 10mA
Channels: 2
Voltage Isolation: 3750Vrms
Common Mode Transient Immunity: 20kV/μs
