Same model may have multiple batches, images only for reference.

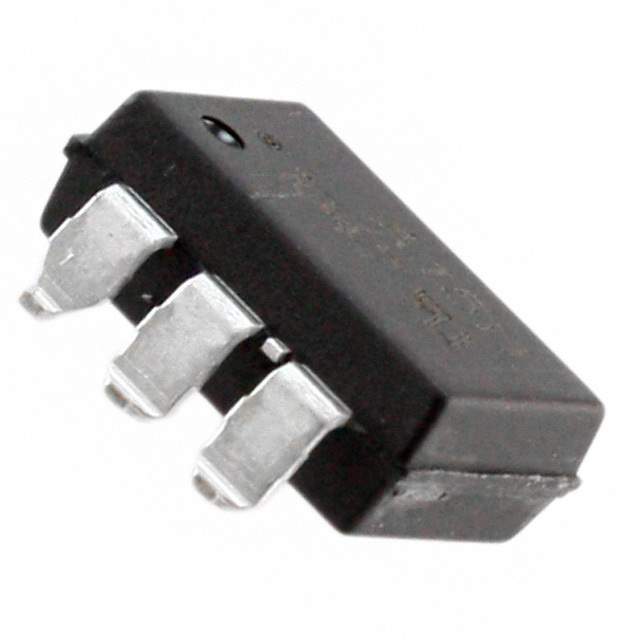

ASSR-1219-301E Real Image
Same model may have multiple batches, images only for reference.

ASSR-1219-301E

Part No ASSR-1219-301E
Manufacturer Broadcom Limited
Catalog Solid State Relays
Description RELAY SSR SPST SGL 0.20A 6SMD GW / Solid State Relay 25mA 1.6V DC-IN 0.2A 60V AC/DC-OUT 6-Pin PDIP SMD Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Broadcom Limited
Series ASSR
Packaging Tube
Circuit SPST-NO (1 Form A)
Output Type AC, DC
On-State Resistance (Maximum) 10 Ohm
Load Current 200mA
Voltage - Input 1.3VDC
Voltage - Load 0 ~ 60 V
Mounting SMD
Termination Style Gull Wing
Package 6-SMD (0.300", 7.62mm)
Manufacturer Package 6-DIP Gull Wing
Relay Type Relay
Win Source Part Number 768858-ASSR-1219-301E
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name ASSR-1219
Introduction Date November 01, 2005
ECCN EAR99
Country of Origin Singapore, Thailand
Halogen Free Not Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian ASSR-1219-301E CAD Model

Description

The Broadcom Limited 768858-ASSR-1219-301E is a SPST-NO (1 Form A) relay.

  • Load Current: 200mA
  • Voltage Load: 0 to 60V
  • Package: 6-SMD
  • Voltage Input: 1.3VDC
  • Output Type: AC/DC
  • On-State Resistance: 10 Ohm
  • Quantity Per Package: 50
  • MSL Level: 1 (Unlimited)
