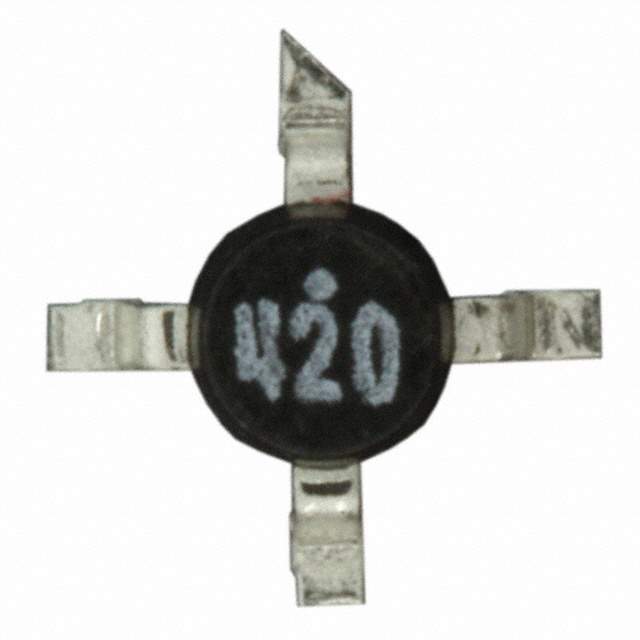

AT-42086-TR1G Real Image
Same model may have multiple batches, images only for reference.

AT-42086-TR1G

Part No AT-42086-TR1G
Manufacturer Broadcom Limited
Catalog RF Transistors (BJT)
Description TRANS NPN BIPO 12V 80MA 86-SMD
Datasheet
AT-42086-TR1G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Obsolete(EOL)
Transistor Polarity NPN
VCEO Maximum Collector-Emitter Breakdown Voltage 12V
Frequency - Transition 8GHz
Noise Figure (dB Typ @ f) 1.9dB to 3.5dB @ 2GHz to 4GHz
Gain 9dB to 13dB
Maximum Power Dissipation 500mW
Typical Gain (hFE) (Min) 30 @ 35mA, 8V
Maximum Current Collector 80mA
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package 86 Plastic
Win Source Part Number 114473-AT-42086-TR1G
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name AT-42086
Introduction Date April 01, 2004
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian AT-42086-TR1G CAD Model

Description

AT-42086-TR1G Product Specifications

The AT-42086-TR1G is engineered to deliver superior performance across a multitude of applications. Its advanced features make it a preferred choice in sectors requiring precision and high efficiency.

  • High Precision: Delivers exceptional accuracy in signal processing.
  • Power Efficiency: Optimized to ensure minimal power draw without compromising performance.
  • Rugged Design: Built to offer resistance against physical and environmental stresses.

Applications

  • Telecommunications
  • Robotics
  • Advanced Computing Systems
  • Renewable Energy Solutions
