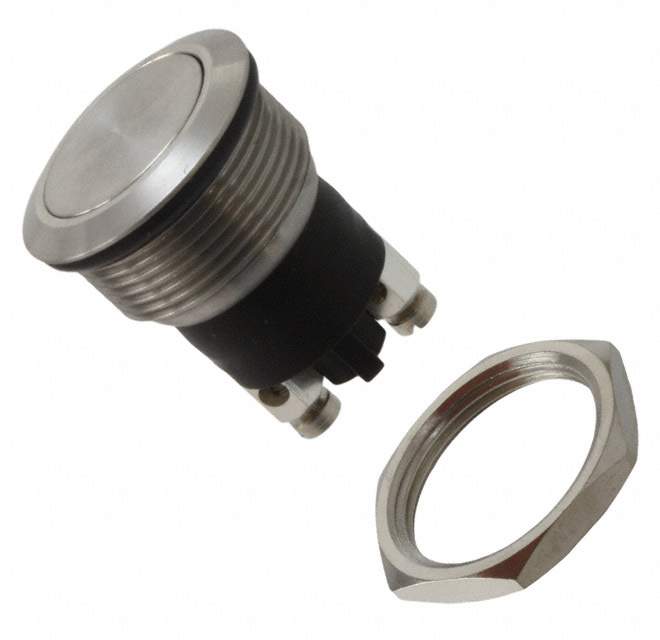

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Manufacturer Bulgin
Packaging Tray
Mounting Panel Mount, Front
Type Anti-Vandal
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 1A (AC/DC)
Voltage Rating - AC 50 V
Voltage Rating - DC 50 V
Actuator Type Round, Button, Flush
Actuator Marking No Marking
Color - Actuator/Cap Silver
Termination Style Screw Terminal
Ingress Protection IP68 - Dust Tight, Waterproof
Panel Cutout Dimensions Circular - 19.20mm Dia
Temperature Range - Operating -20°C ~ 70°C
Mechanical Life 1,000,000 Cycles
Electrical Life 30,000 Cycles
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Part Number 708-1303
Standard Package 50
Win Source Part Number 1323783-MP0037
Ultra Librarian 3D Model Ultra Librarian MP0037 CAD Model

Description

The Bulgin anti-vandal pushbutton switch is designed to provide a reliable and secure solution for a range of applications.

  • Termination Style: Screw Terminal
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Round, Button, Flush
  • Electrical Life: 30,000 cycles
  • Mechanical Life: 1,000,000 cycles
  • Ingress Protection: IP68
  • Voltage Rating (AC/DC): 50V
  • Current Rating: 1A
  • Color: Silver
  • Actuator Marking: None
  • Operating Temperature: -20°C to 70°C
