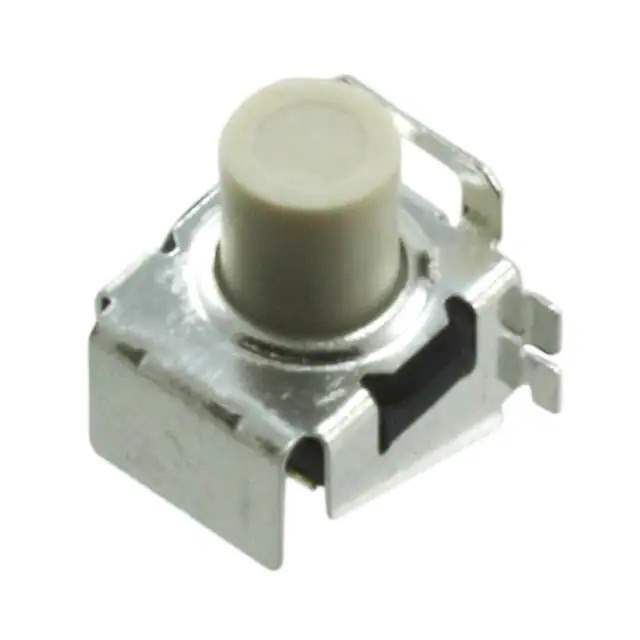

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr C&K Components
Series KT
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 1VA @ 32VAC/DC
Actuator Type Standard
Mounting Type Surface Mount, Right Angle
Actuator Orientation Side Actuated
Termination Style Gull Wing
Outline 7.77mm x 6.41mm
Illumination Non-Illuminated
Operating Force 300gf
Ingress Protection IP57 - Dust Protected, Waterproof
Features Sealed
Temperature Range - Operating -40°C ~ 90°C
Actuator Material Polyamide (PA), Nylon
Mechanical Life 100,000 Cycles
Base Product Number KT11P4
Standard Package 600 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 876477-KT11P4SA2M34LFS
Ultra Librarian 3D Model Ultra Librarian KT11P4SA2M34LFS CAD Model

Description

The KT11P4SA2M34LFS is a tactile switch from C&K Components.

  • Series: KT
  • Termination Style: gull-wing
  • Sealed: yes
  • Ingress Protection: IP57
  • Actuator Material: polyamide (PA) and nylon
  • Standard Package Quantity: 600 pcs
  • Packaging: tape and reel
  • Switch Function: SPST-NO off-momentary
  • Contact Rating: 1VA @ 32VAC/DC
  • Operating Temperature: -40°C to 90°C
  • Mounting: surface mount, right-angle
  • Product Status: active
  • ECCN: EAR99
  • REACH Status: REACH unaffected
  • HTSUS: 8536.50.9031
