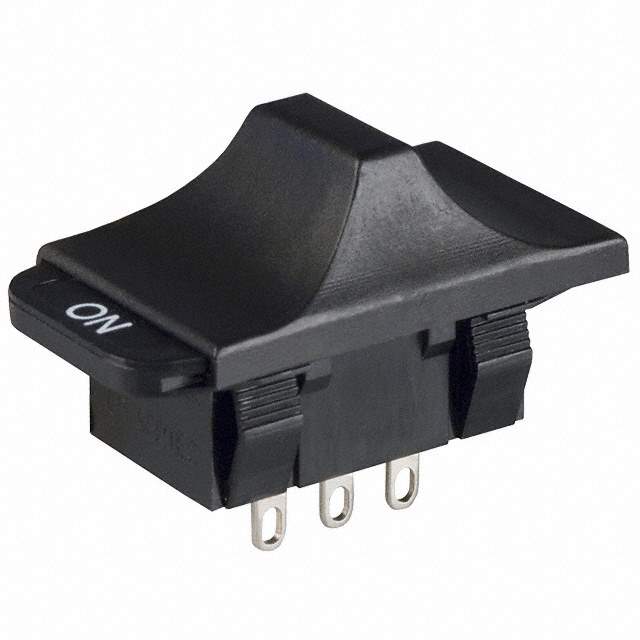

LP82C21T203DQ Real Image
Same model may have multiple batches, images only for reference.

LP82C21T203DQ

Part No LP82C21T203DQ
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 11A 125V  /  Slide Switch DPDT Panel Mount, Snap-In
Datasheet
LP82C21T203DQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series LP
Package Bulk
Product Status Obsolete
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 11A (AC)
Voltage Rating - AC 125 V
Actuator Type Snap on Cap
Actuator Length 9.55mm
Contact Material Copper
Contact Finish Silver
Mounting Type Panel Mount, Snap-In
Termination Style Solder Lug
Features On-Off Marking on Housing
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Acetal, Glass Filled
Electrical Life 10,000 Cycles
Base Product Number LP82C21
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Other Names LP82C21T203DQ-ND,-LP82C21T203DQ,CKN11880
Standard Package 72
Win Source Part Number 1022548-LP82C21T203DQ
Ultra Librarian 3D Model Ultra Librarian LP82C21T203DQ CAD Model

Description

This slide switch is a part of the LP series and has a Win Source Part Number of 1022548-LP82C21T203DQ.

  • Series: LP
  • Win Source Part Number: 1022548-LP82C21T203DQ
  • Termination Style: Solder Lug
  • Marking: On-Off on Housing
  • Contact Finish: Silver
  • Contact Material: Copper
  • Actuator Material: Acetal and Glass Filled
  • Circuit: DPDT
  • Switch Function: On-On
  • Actuator Type: Snap On Cap
  • Actuator Length: 9.55mm
  • Electrical Life: 10,000 Cycles
  • Mounting Type: Panel Mount and Snap-In
  • Temperature Range: -30°C to 65°C
