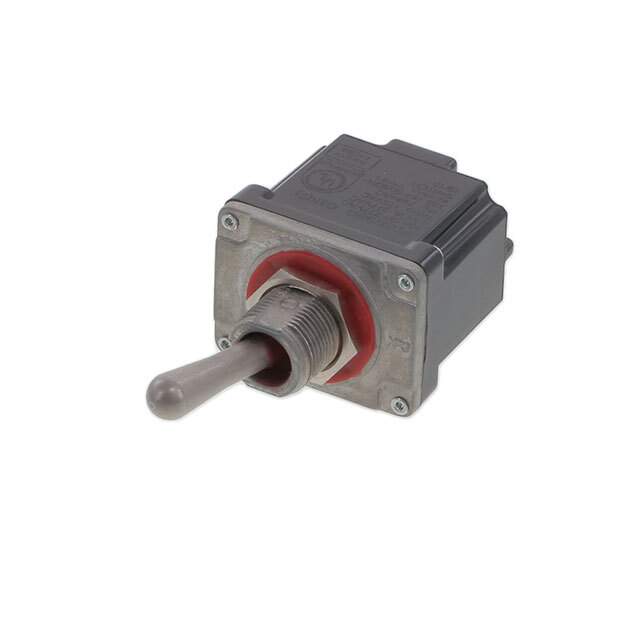

PT202SSQ Real Image
Same model may have multiple batches, images only for reference.

PT202SSQ

Part No PT202SSQ
Manufacturer C&K Components
Catalog Toggle Switches
Description SWITCH PT202S TOGGLE  /  Toggle Switch DPST Panel Mount
Datasheet
PT202SSQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr C&K
Series PT
Package Tray
Mounting Type Panel Mount
Circuit DPST
Switch Function On-Off
Current Rating (Amps) 15A (AC/DC)
Voltage Rating - AC 277 V
Voltage Rating - DC 28 V
Actuator Type Standard Round
Actuator Length 17.20mm
Illumination Non-Illuminated
Termination Style Screw Terminal
Panel Cutout Dimensions Circular - 12.40mm Dia
Bushing Thread 15/32-32
Ingress Protection IP66/IP68 - Dust Tight, Water Resistant, Waterproof
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Stainless Steel
Electrical Life 10,000 Cycles
Base Product Number PT202S
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Other Names CKN12192,2266-PT202SSQ
Standard Package 20
Win Source Part Number 1157013-PT202SSQ
Ultra Librarian 3D Model Ultra Librarian PT202SSQ CAD Model

Description

The PT202SSQ is a DPST On-Off Standard Round Actuator Toggle Switch from C&K.

  • Termination Style: Screw terminal
  • Actuator Material: Stainless steel
  • Voltage Rating: 277 V AC and 28 V DC
  • Illumination: Non-illuminated
  • Bushing Thread: 15/32-32
  • Panel Cutout Dimensions: Circular with a diameter of 12.40mm
  • Temperature Range: -40°C to 85°C
  • Electrical Life: 10,000 cycles
  • Mounting: Panel
  • Ingress Protection: IP66/IP68, dust tight, water-resistant, and waterproof
  • Ideal for: Use in harsh environments
