Same model may have multiple batches, images only for reference.

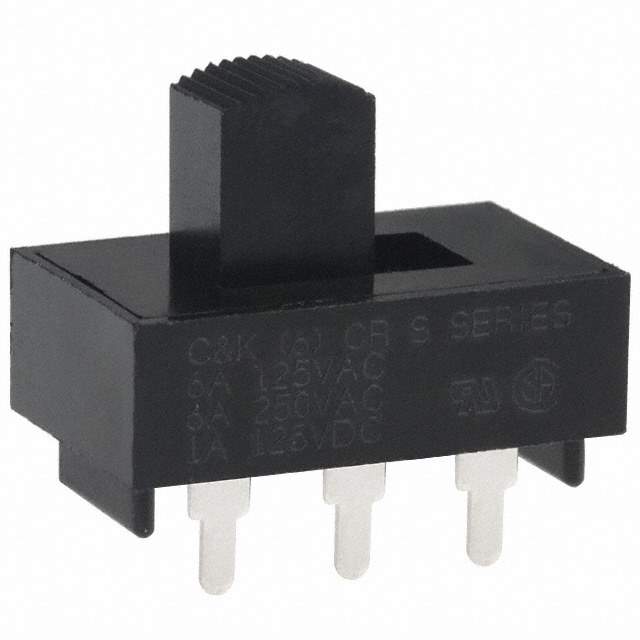

S102031MS02Q Real Image
Same model may have multiple batches, images only for reference.

S102031MS02Q

Part No S102031MS02Q
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE SPDT 6A 125V  /  Slide Switch SPDT Through Hole
Datasheet
S102031MS02Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series S
Package Bulk
Circuit SPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 6A (AC), 1A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Standard
Actuator Length 8.51mm
Contact Material Copper
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 4.57mm
Electrical Life 10,000 Cycles
Base Product Number S102031
Other Names *S102031MS02Q,CKC5113,S102031MS02Q
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1233154-S102031MS02Q
Ultra Librarian 3D Model Ultra Librarian S102031MS02Q CAD Model

Description

The slide switch electronic component is a SPDT circuit with an on-on switch function.

  • Circuit: SPDT
  • Switch Function: On-On
  • Voltage Rating for AC and DC: 125 V
  • Current Rating: 6A (AC), 1A (DC)
  • Temperature Range for Operating: -30°C to 65°C
  • Electrical Life: 10,000 cycles
  • Mounting Type: Through Hole
