Products specifications

Category Switches>DIP Switches
Mfr C&K
Series SP
Product Status Obsolete
Circuit SPST
Number of Positions 2
Current Rating (Amps) 10mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.169" (4.30mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -20°C ~ 85°C
Body Material Polybutylene Terephthalate (PBT)
Length 0.298" (7.58mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Other Names CKN1357,*SP02A
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233702-SP02A
Ultra Librarian 3D Model Ultra Librarian SP02A CAD Model

Description

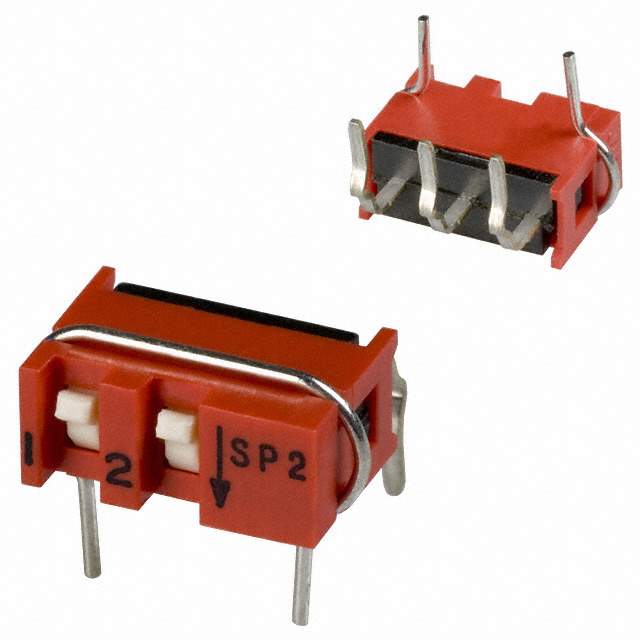

The C&K SP DIP switch has two positions and is a SPST circuit switch with a slide (standard) actuator type.

  • Manufacturer: C&K
  • Positions: Two
  • Circuit: SPST
  • Actuator Type: Slide (standard)
  • Pitch: 0.100" (2.54mm), full
  • Termination Style: PC Pin
  • Voltage Rating: 20VDC
  • Current Rating: 10mA
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Mounting Type: Through-hole
  • Temperature Range: -20°C to 85°C
  • Standard Package: 50
  • ECCN: EAR99
  • REACH: Unaffected
  • Obsolete: Yes
