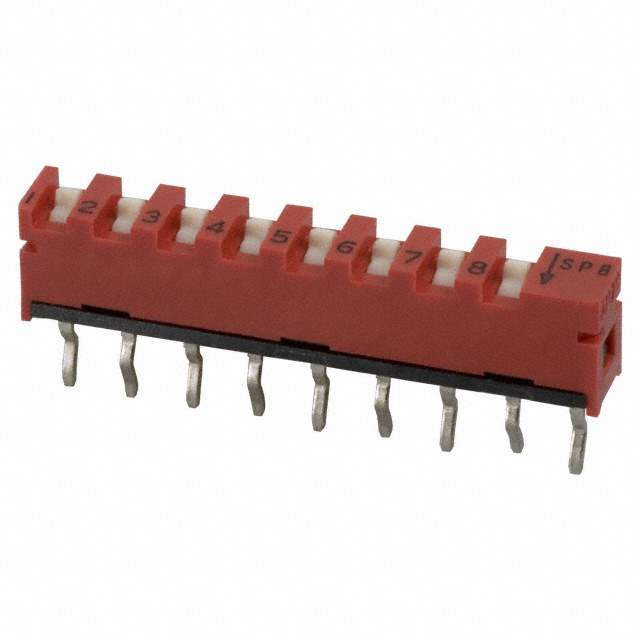

SP08B Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SP
Product Status Obsolete
Circuit SPST
Number of Positions 8
Current Rating (Amps) 10mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.196" (4.99mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -20°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.898" (22.82mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Other Names *SP08B,CKN9147
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233694-SP08B
Ultra Librarian 3D Model Ultra Librarian SP08B CAD Model

Description

The SP series DIP switch from C&K with 8 positions is a through-hole mounting style switch.

  • Manufacturer: C&K
  • Positions: 8
  • Mounting Style: Through-hole
  • Pitch: 0.100" (2.54mm)
  • Termination Style: Full
  • Termination: PC pins
  • Actuator Type: Slide
  • Circuit: SPST
  • Contact Finish: Gold
  • Contact Material: Beryllium copper
  • Voltage Rating: 20VDC
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Actuator Level: Flush or recessed
  • Washable: Yes
  • Temperature Range: -20°C ~ 85°C
  • Body Material: Polyphenylene sulfide (PPS)
  • Obsolete: Yes
  • Standard Package: 20
