Same model may have multiple batches, images only for reference.

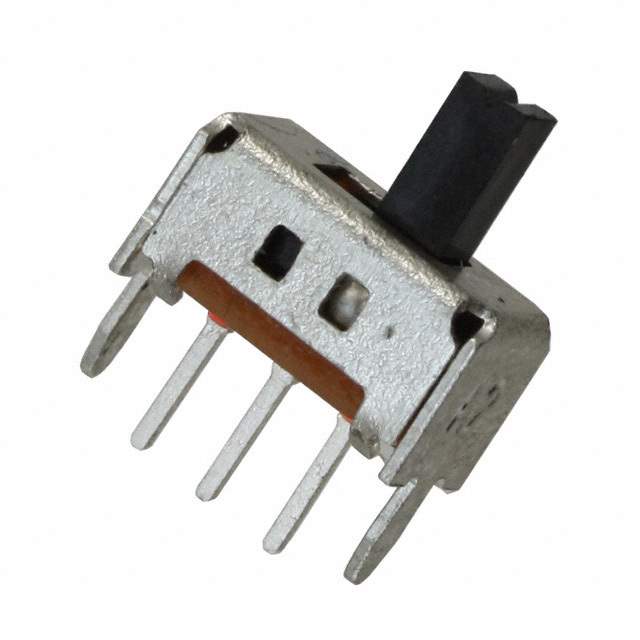

SS12D07VG4NSGAPA Real Image
Same model may have multiple batches, images only for reference.

SS12D07VG4NSGAPA

Part No SS12D07VG4NSGAPA
Manufacturer C&K Components
Catalog Slide Switches
Description Switch Slide ON ON SPDT Top Slide 0.3A 30VDC PC Pins Bracket Mount/Through Hole Automotive Bulk
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Actuator Length 4 mm
Actuator Material Nylon, Polyamide
Contact Current Rating 300 mA
Contact Plating Silver
Contact Style Non-Shorting
Current Rating 300 mA
Electrical Life 10 kcycles
Illumination Type Non-Illuminated
Maximum Operating Temperature 70 °C
Min Operating Temperature -20 °C
Mount Through Hole
RoHS Compliant
Switch Function On-On
Switch Travel 2 mm
Termination PC Pin
Throw Configuration SPDT
Voltage Rating (DC) 30 V
Win Source Part Number 1096026-SS12D07VG4NSGAPA
Categories Slide Switches
Manufacturer C&K Components
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian SS12D07VG4NSGAPA CAD Model

Description

The SS-12D07-VG4NSGAPA is a slide switch manufactured by C&K Components.

  • Termination: PC pin
  • Current Rating: 300 mA
  • Actuator Material: Nylon and polyamide
  • Contact Plating: Silver
  • Switch Function: On-On
  • Actuator Length: 4 mm
  • Switch Travel: 2 mm
  • Electrical Life: 10 kcycles
  • Contact Current Rating: 300 mA
  • Illumination: Non-illuminated
  • Maximum Operating Temperature: 70 °C
  • Throw Configuration: SPDT
  • Contact Style: Non-shorting
