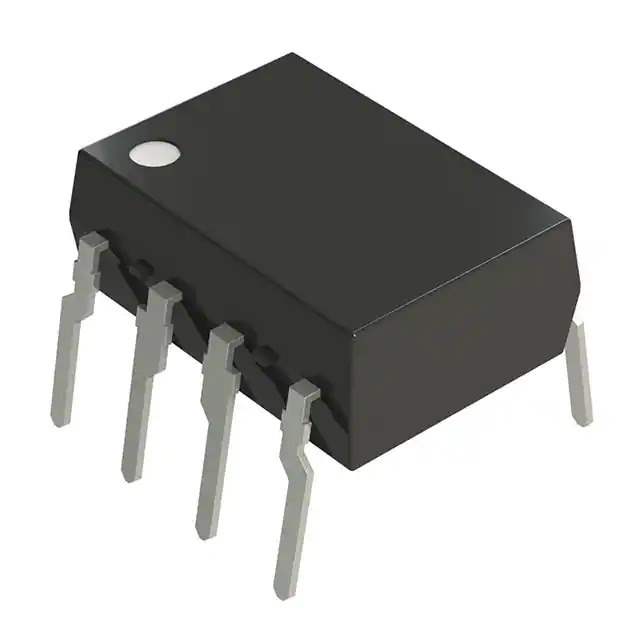

PS7113-2A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr CEL
Series PS, OCMOS
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A) x 2
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 100 V
Load Current 350 mA
On-State Resistance (Max) 2.5 Ohms
Termination Style PC Pin
Package / Case 8-DIP (0.300", 7.62mm)
Supplier Device Package 8-DIP
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 657041-PS7113-2A
Ultra Librarian 3D Model Ultra Librarian PS7113-2A CAD Model

Description

The PS7113-2A is a solid state relay with a SPST-NO (1 Form A) x 2 circuit configuration.

  • Voltage Input: 1.2VDC
  • Load Current: 350mA
  • Voltage Load Range: 0V to 100V
  • On-State Resistance: 2.5 Ohms
  • Mounting: Through-Hole
  • Package: 8-DIP
  • Temperature Range: -55°C to 100°C
  • Status: Obsolete
