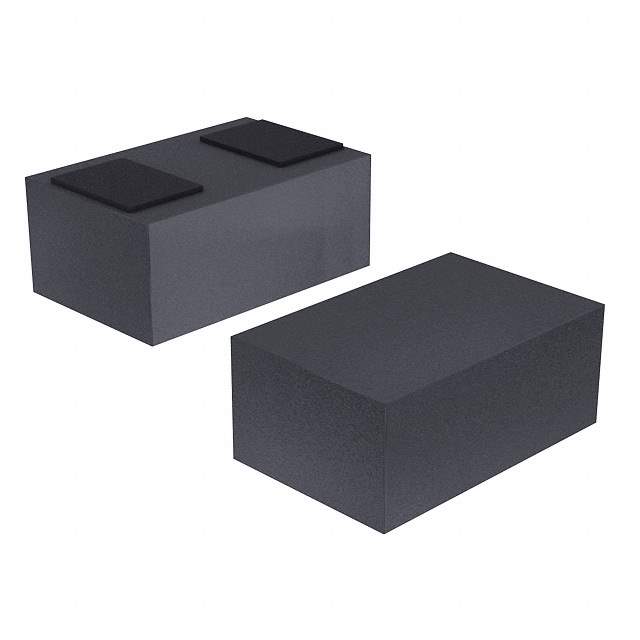

CPDER12V Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 7 Weeks
Features 25V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 0503/SOD-723F
Manufacturer Comchip Technology
Package Reel - TR
Mounting Surface Mount
Package 0503 (1308 Metric)
Case / Package 0503/SOD-723F
Family Name CPDER12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 4000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 867095-CPDER12V
Ultra Librarian 3D Model Ultra Librarian CPDER12V CAD Model

Description

The Comchip Technology CPDER12V is a 25V clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 0503/SOD-723F.

  • Family Name: CPDER12
  • Category: Circuit Protection
  • Package Type: Reel - TR
  • Package Size: 0503 (1308 Metric)
  • Mounting Type: Surface Mount
  • ECCN: EAR99
  • Estimated Production Lead Time: 7 weeks
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • Demand: Medium
  • Quantity per Package: 4000
