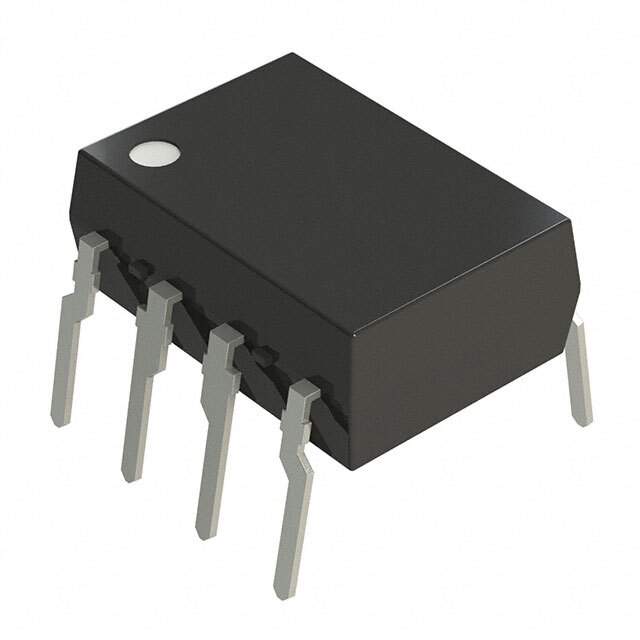

PS7141-2B Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer CEL
Packaging Tube/Rail
Status Obsolete(EOL)
Circuit DPST (2 Form B)
Output Type AC, DC
Max On Resistance 30 Ohm
Load Current 150mA
Voltage - Input 1.2VDC
Voltage - Load 0 to 400 V
Mounting Through Hole
Termination Style PC Pin
Case / Package 8-DIP
Relay Type Relay
Win Source Part Number 132310-PS7141-2B
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Communications & Networking, Computers & Computer Peripherals, Sensing & Instrumentation, Metering, Medical, Security, Defence, Military & Aerospace, Automation & Process Control
Ultra Librarian 3D Model Ultra Librarian PS7141-2B CAD Model

Description

The PS7141-2B is a DPST (2 Form B) AC/DC relay manufactured by CEL.

  • Load Current: 150mA
  • Voltage Load Range: 0 to 400V
  • Maximum On Resistance: 30 Ohm
  • Design: designed to be used in various applications such as communications and networking, computers and computer peripherals, sensing and instrumentation, metering, medical, security, defence, military and aerospace, automation and process control
  • Voltage Input: 1.2VDC
  • Case/Package: 8-DIP case/package
  • Termination Style: PC pin termination style
  • Popularity: medium popularity
  • Supply and Demand Status: limited supply and demand status
