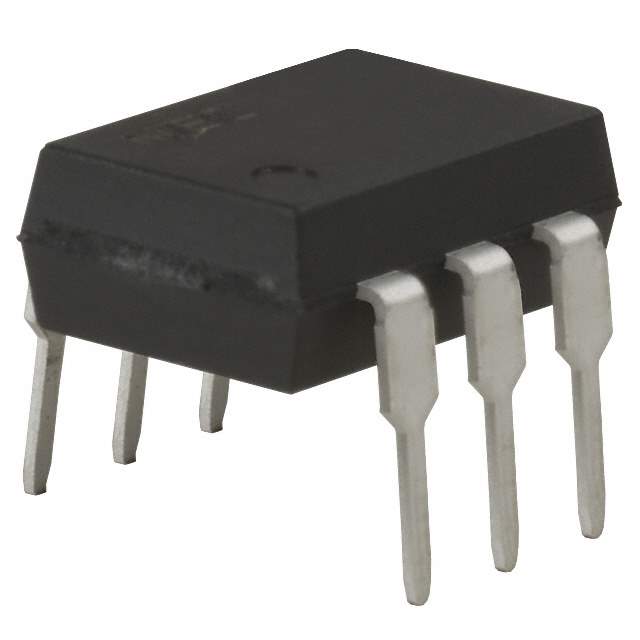

PS7142-1A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer CEL
Packaging Tube/Rail
Status Obsolete(EOL)
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Max On Resistance 10 Ohm
Load Current 200mA
Voltage - Input 1.2VDC
Voltage - Load 0 to 400 V
Mounting Through Hole
Termination Style PC Pin
Case / Package 6-DIP
Relay Type Relay
Win Source Part Number 133706-PS7142-1A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PS7142-1A CAD Model

Description

The CEL PS7142-1A is a relay with an SPST-NO (1 Form A) circuit.

  • Load Current: 200mA
  • Voltage Load: 0 to 400 V
  • Design: for use in applications where electrical isolation is required between input and output circuits
  • Supply and Demand Status: limited
  • Maximum On Resistance: 10 Ohm
  • Case/Package: 6-DIP
