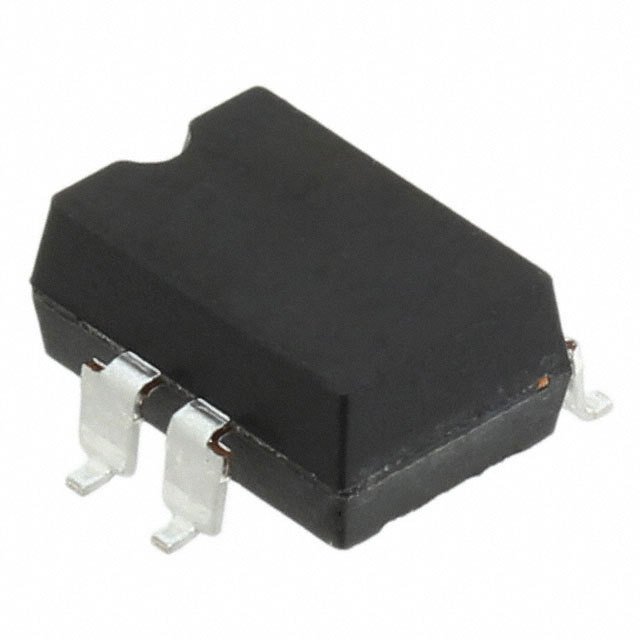

Same model may have multiple batches, images only for reference.
PVA3324NSPBF Infineon Technologies
Same model may have multiple batches, images only for reference.

PVA3324NSPBF

Part No PVA3324NSPBF
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description IC RELAY PHOTOVO 300V 150MA 8SMD
Datasheet
PVA3324NSPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Active
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Max On Resistance 24 Ohm
Load Current 150mA
Voltage - Input 1.2VDC
Voltage - Load 0 to 300 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 8-SMT Modified
Relay Type Relay
Win Source Part Number 1090757-PVA3324NSPBF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PVA3324NSPBF CAD Model

Description

The Infineon Technologies PVA3324NSPBF is a relay with a circuit of SPST-NO (1 Form A) and a maximum load current of 150mA.

  • Circuit: SPST-NO (1 Form A)
  • Maximum Load Current: 150mA
  • Voltage Input: 1.2VDC
  • Maximum On Resistance: 24 Ohm
  • Package: 8-SMT modified
  • Category: Relays
  • Status: Active
