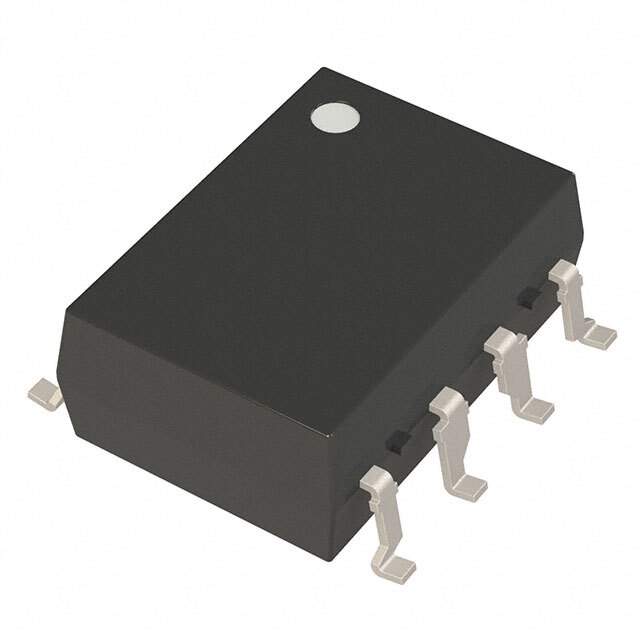

PS9601L Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Bulk
Status Obsolete(EOL)
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 5000Vrms
Input Type DC
Output Type Open Collector
Channel Output Current 50mA
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Rise and Fall Time 20ns, 10ns
Forward Voltage 1.65V
Continuous forward current- Max 30mA
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-SMD Gull Wing
Win Source Part Number 281526-PS9601L
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PS9601L CAD Model

Description

The PS9601L is an obsolete (EOL) isolator manufactured by CEL.

  • Product: PS9601L
  • Manufacturer: CEL
  • Status: obsolete (EOL)
  • Package: 8-SMD Gull Wing
  • Mounting Type: SMD (SMT)
  • Output Type: open collector
  • Forward Voltage: 1.65V
  • Input Type: single channel
  • Common Mode Transient Immunity (Min): -
  • Propagation Delay tpLH / tpHL (Max): 75ns, 75ns
  • Isolation Voltage: 5000Vrms
