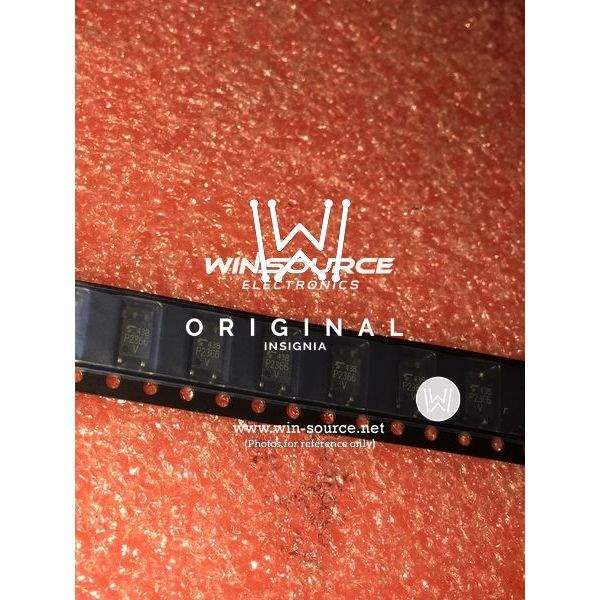

TLP2366

Name: TLP2366
Brand: Toshiba Semiconductor and Storage
SKU: 370217
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TLP2366
Manufacturer	Toshiba Semiconductor and Storage
Catalog	Optoisolators - Logic Output
Description	Optocoupler Logic-Out Totem-Pole DC-IN 1-CH 5-Pin SO Magazine / OPTOISO 3.75KV PUSH PULL SO6-5
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Isolators
Manufacturer	Toshiba Semiconductor and Storage
Packaging	Tube/Rail
Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Isolation Voltage	3750Vrms
Common Mode Transient Immunity (Min)	20kV/μs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Channel Output Current	10mA
Data Rate	20MBd
Propagation Delay tpLH / tpHL (Max)	40ns, 40ns
Rise and Fall Time	15ns, 15ns
Forward Voltage	1.61V
Continuous forward current- Max	25mA
Supply Voltage - Operating	2.7 V to 5.5 V
Temperature Range - Operating	-40°C to 125°C
Mounting	SMD (SMT)
Case / Package	6-SO, 5 Lead
Win Source Part Number	109301-TLP2366
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Family Name	TLP2366
Introduction Date	May 24, 2011
ECCN	EAR99
Country of Origin	Japan, Thailand
Estimated EOL Date	2031
Ultra Librarian 3D Model	Ultra Librarian TLP2366 CAD Model

Alternative Products

Description

The Toshiba Semiconductor and Storage TLP2366 is an optoisolator with a push-pull, totem pole output type and a data rate of 20MBd.

Output Type: push-pull, totem pole
Data Rate: 20MBd
Isolation Voltage: 3750Vrms
Common Mode Transient Immunity: 20kV/μs
Propagation Delay: 40ns
Package: 6-SO, 5 lead
Mounting Technology: surface mount technology
Temperature Range: -40°C to 125°C
