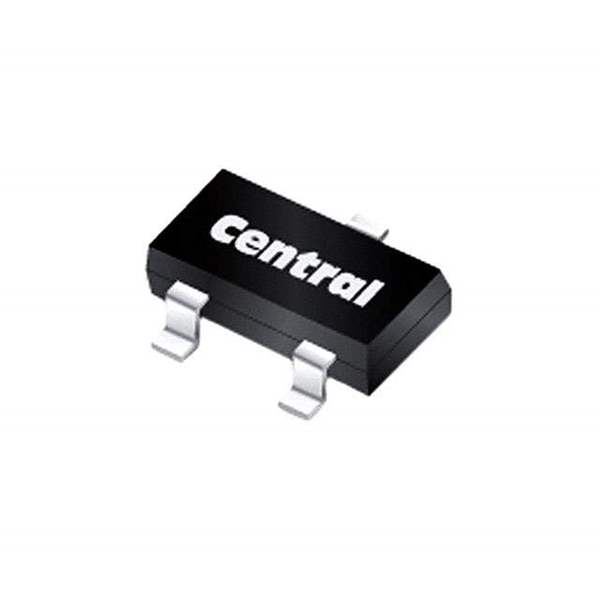

CMPD2003C TR Central Semiconductor Corp
Same model may have multiple batches, images only for reference.

CMPD2003C TR

Part No CMPD2003C TR
Manufacturer Central Semiconductor Corp
Catalog Diodes, Rectifiers - Arrays
Description DIODE GEN PURP 200V 200MA SOT23
Datasheet
CMPD2003C TR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Central Semiconductor Corp
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) (per Diode) 200mA
Voltage - Forward (Vf) (Max) @ If 1.25V @ 200mA
Reverse Recovery Time (trr) 50ns
Current - Reverse Leakage @ Vr 100nA @ 200V
Operating Temperature - Junction -65°C to 150°C
Mounting SMD (SMT)
Case / Package SOT-23
Win Source Part Number 1029664-CMPD2003C TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CMPD2003C TR CAD Model

Description

The Central Semiconductor Corp CMPD2003C TR is a pair of standard diodes designed for use in rectification circuits.

  • Manufacturer: Central Semiconductor Corp
  • Part Number: CMPD2003C TR
  • Type: standard diodes
  • Application: rectification circuits
  • Maximum DC Reverse Voltage: 200V
  • Forward Voltage @ 200mA: 1.25V
  • Reverse Recovery Time: 50ns
  • Leakage Current @ 200V: 100nA
  • Package: SOT-23
  • Mounting: surface mount
  • Popularity: medium
  • Status: active
  • Supply and Demand: balanced
