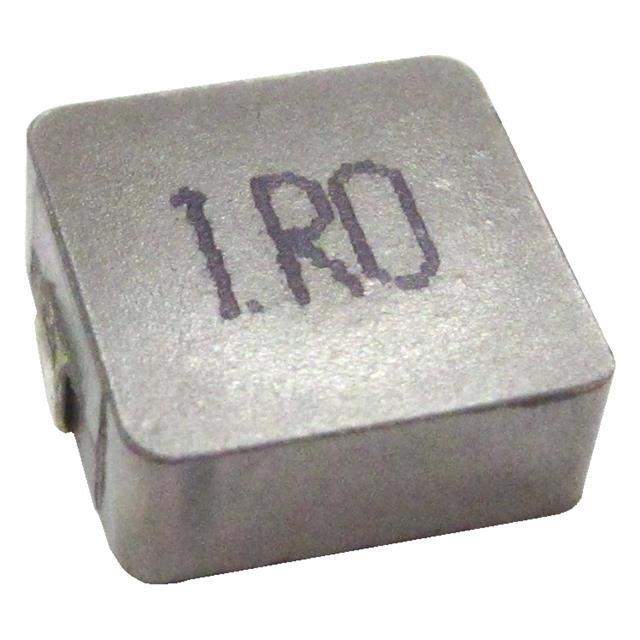

Same model may have multiple batches, images only for reference.
BMRF00171770330MB1 Real Image
Same model may have multiple batches, images only for reference.

BMRF00171770330MB1

Part No BMRF00171770330MB1
Manufacturer Chilisin
Catalog Fixed Inductors
Description INDUCTOR POWER / 33 µH Shielded Molded Inductor 8 A 37mOhm Max Nonstandard
Datasheet
BMRF00171770330MB1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Chilisin Electronics
Series BMRX
Package Tape & Reel (TR)
Type Molded
Inductance 33 µH
Tolerance ±20%
Current Rating (Amps) 8 A
Current - Saturation (Isat) 8.6A
Shielding Shielded
DC Resistance (DCR) 37mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.675" L x 0.675" W (17.15mm x 17.15mm)
Height - Seated (Max) 0.276" (7.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 553-BMRF00171770330MB1TR
Standard Package 200
Win Source Part Number 1191409-BMRF00171770330MB1
Ultra Librarian 3D Model Ultra Librarian BMRF00171770330MB1 CAD Model

Description

The BMRX series inductor from Chilisin Electronics is a molded shielded fixed inductor.

  • Manufacturer: Chilisin Electronics
  • Type: Molded Shielded Fixed Inductor
  • Inductance: 33 µH
  • Tolerance: ±20%
  • Maximum Seated Height: 0.276" (7.00mm)
  • DC Resistance: 37mOhm Max
  • Current Rating: 8 A
  • Saturation Current: 8.6A
  • Package/Case: Non-Standard
  • Mounting Technology: SMD (SMT)
  • Operating Temperature Range: -55°C to 125°C
  • Packaging: Tape & Reel (TR)
  • Standard Package: 200 units
  • Dimensions: 0.675" L x 0.675" W (17.15mm x 17.15mm)
  • ECCN: EAR99
  • HTSUS: 8504.50.8000
