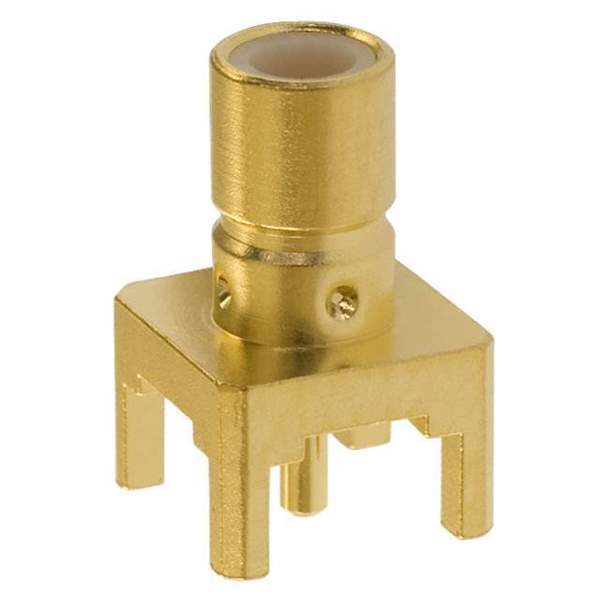

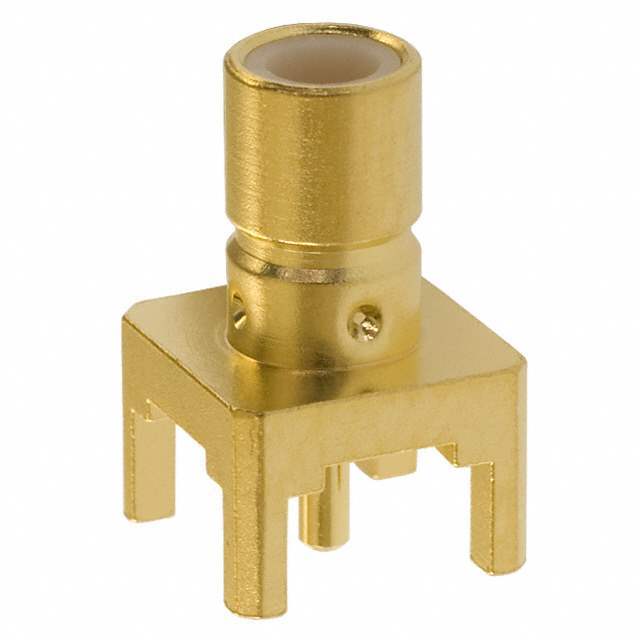

131-3701-271 Cinch Connectivity Solutions Johnson
Same model may have multiple batches, images only for reference.

131-3701-271

Part No 131-3701-271
Manufacturer Cinch Connectivity Solutions
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMB JACK STR 50 OHM PCB
Datasheet
131-3701-271 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308269-131-3701-271
Manufacturer Cinch Connectivity Solutions Johnson
Category Connectors, Interconnects >Coaxial Connectors (RF) >Coaxial Connector (RF) Assemblies
Packaging  Bulk
Part Status Active
Connector Style SMB
Connector Type Jack, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohms
Mounting Type Through Hole
Ultra Librarian 3D Model Ultra Librarian 131-3701-271 CAD Model

Description

SMB Connector Jack, Male Pin 50 Ohms Through Hole Solder
