Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 750mV @ 5A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 60V
Mounting SMD (SMT)
Case / Package DO-214AB, (SMC)
Operating Temperature - Junction -40°C to 125°C
Win Source Part Number 1022382-CDBC560-G
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian CDBC560-G CAD Model

Description

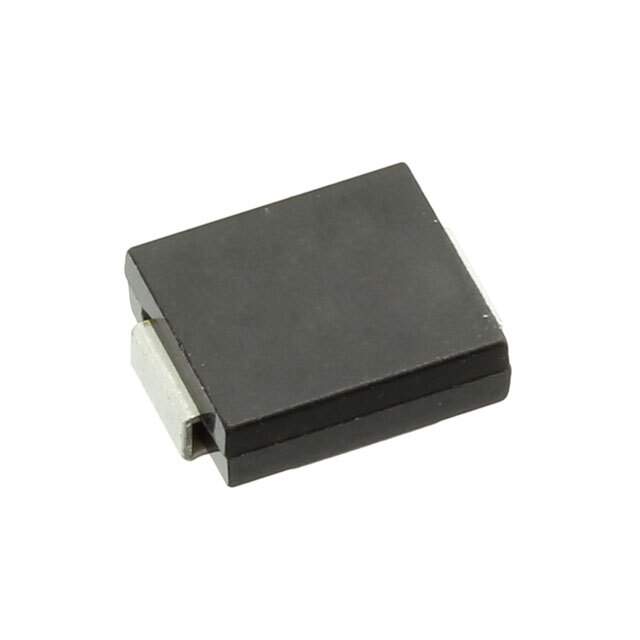

The CDBC560-G is a Schottky Barrier Rectifier manufactured by Comchip Technology. It is designed for high-frequency rectification and features low forward voltage drop and fast switching speed. These characteristics make it well-suited for applications requiring efficient and rapid switching, especially in low-voltage circuits. The "-G" suffix typically indicates that the component is RoHS compliant and lead-free.

Applications:

  • Switching Mode Power Supplies (SMPS)
  • DC-DC converters
  • Freewheeling diodes in inductive loads
  • Reverse polarity protection
  • Battery chargers
  • Solar panel bypass diodes

Features:

  • Schottky Barrier Rectifier: Provides low forward voltage drop and fast switching speed.
  • Low forward voltage drop (VF): Minimizes power losses during conduction.
  • Fast switching speed: Enables efficient high-frequency operation.
  • High surge current capability: Withstands transient current spikes.
  • RoHS compliant: Environmentally friendly, lead-free construction.
  • Compact package size: Allows for space-saving designs.

Benefits:

  • High Efficiency: Low forward voltage drop reduces power dissipation and increases efficiency, especially in low-voltage applications.
  • Fast Switching: Fast recovery time minimizes switching losses and enables higher operating frequencies.
  • Improved Performance: Schottky rectifiers generally offer better performance than standard silicon diodes in high-frequency circuits.
  • Reliable Operation: High surge current capability ensures robust performance under transient conditions.
  • Environmentally Friendly: RoHS compliance ensures compliance with environmental regulations.

Additional Details:

The CDBC560-G's key parameters include its forward current (IF), peak reverse voltage (VRRM), and forward voltage drop (VF). The operating temperature range and thermal resistance are also important considerations for proper heatsinking and thermal management. Designers should consult the manufacturer's datasheet for detailed specifications, application notes, and recommended operating conditions. This component typically comes in a surface mount package, suitable for automated assembly processes.
