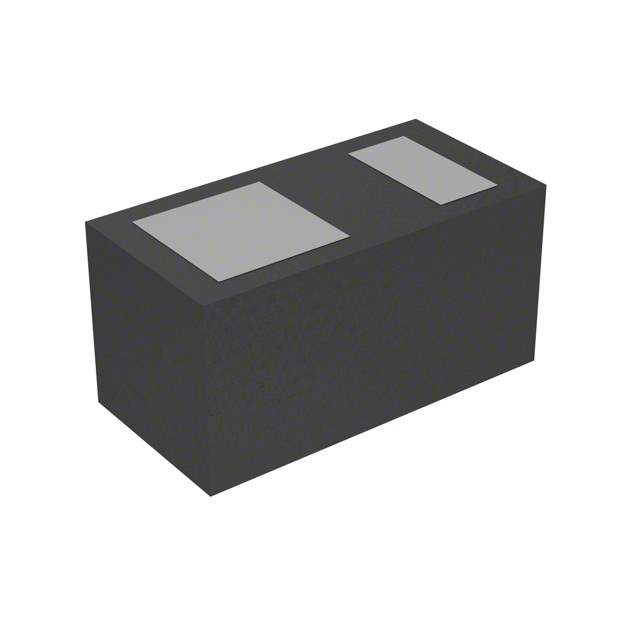

CPDZ5V0C-HF Real Image
Same model may have multiple batches, images only for reference.

CPDZ5V0C-HF

Part No CPDZ5V0C-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 15VC 0201
Datasheet
CPDZ5V0C-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 5.5V
Max Clamping Voltage 15V
Peak Pulse Current(Ippm) 2A (8/20μs)
Power Dissipation - Pd 30W
Applications General Purpose
Capacitance @ Frequency 6pF @ 1MHz
Mounting SMD (SMT)
Case / Package 0201/DFN0603
Win Source Part Number 1030130-CPDZ5V0C-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 10k pcs
Ultra Librarian 3D Model Ultra Librarian CPDZ5V0C-HF CAD Model

Description

The Comchip Technology CPDZ5V0C-HF is an active electronic component that is medium in popularity.

  • Type: Zener
  • Capacitance: 6pF @ 1MHz
  • Package: 0201/DFN0603
  • STAND-OFF voltage (Vwm): 5V (Max)
  • Minimum Breakdown Voltage: 5.5V
  • Max Clamping Voltage: 15V
  • Peak Pulse Current(Ippm): 2A (8/20μs)
  • Power Dissipation - Pd: 30W
  • Ideal Use: various electronic devices
  • Package Quantity: 10k pcs
