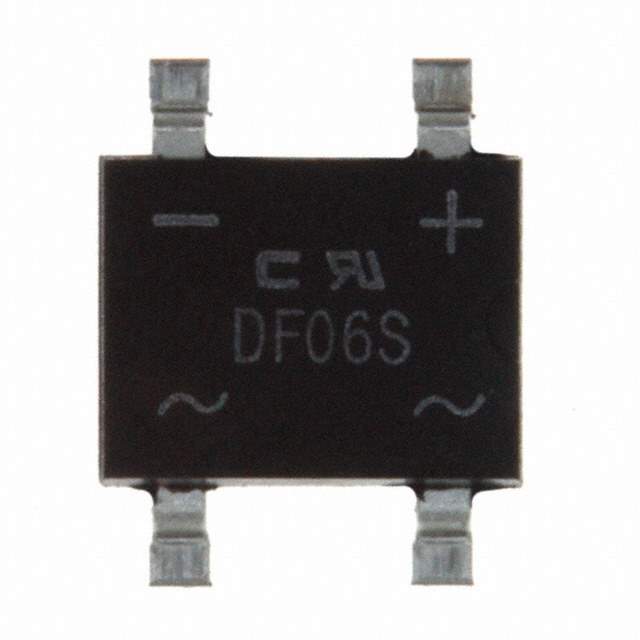

DF06S-G Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Current - Reverse Leakage @ Vr 10μA @ 600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DFS
Win Source Part Number 050801-DF06S-G
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian DF06S-G CAD Model

Description

Product Overview

The DF06S-G is a precision-engineered bridge rectifier diode that combines high efficiency with compact design. Built to support modern electronic applications, it ensures robust and reliable performance under a wide range of conditions.

Features and Benefits

  • High forward surge current capability
  • Low thermal resistance
  • Fast switching speeds
  • Environmentally friendly lead-free construction

Applications

  • Power converters
  • HVAC systems
  • Uninterruptible power supplies (UPS)
  • Industrial motor controls

The DF06S-G offers a cost-effective solution for demanding power management applications, while maintaining high operational standards
