Same model may have multiple batches, images only for reference.

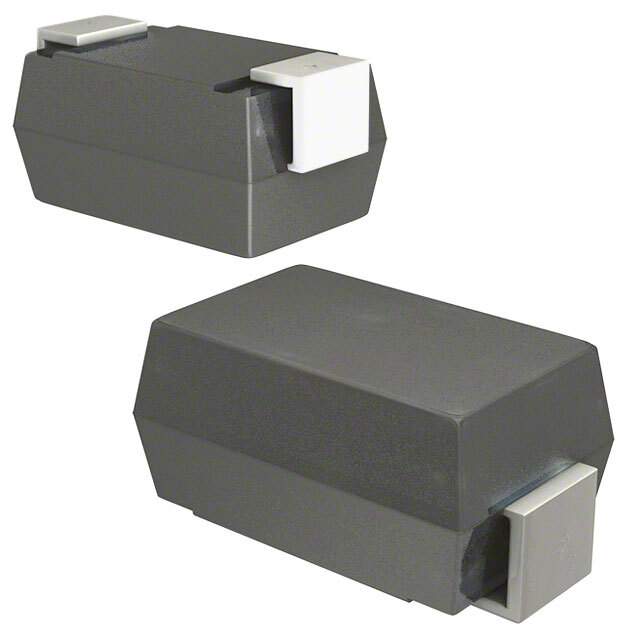

US1J-HF Real Image
Same model may have multiple batches, images only for reference.

US1J-HF

Part No US1J-HF
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description RECTIFIER ULTRA FAST RECOVERY 60  /  Diode Standard 600 V 30A Surface Mount DO-214AC (SMA)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Comchip Technology
Package Tape & Reel (TR)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) 30A
Voltage - Forward (Vf) (Max) @ If 1.65 V @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 75 ns
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Capacitance @ Vr, F 15pF @ 4V, 1MHz
Mounting SMD (SMT)
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number US1J
ECCN EAR99
HTSUS 8541.10.0080
Other Names 641-US1J-HFTR
Standard Package 5,000
Win Source Part Number 1107024-US1J-HF
Ultra Librarian 3D Model Ultra Librarian US1J-HF CAD Model

Description

The Comchip Technology US1J-HF is a standard diode with a maximum reverse voltage of 600V and a current rating of 30A.

  • Manufacturer: Comchip Technology
  • Maximum Reverse Voltage: 600V
  • Current Rating: 30A
  • Forward Voltage: 1.65V @ 1A
  • Reverse Recovery Time: 75ns
  • Reverse Leakage Current: 5μA @ 600V
  • Capacitance: 15pF @ 4V, 1MHz
  • Case: DO-214AC, SMA
  • Frequency: <500ns, >200mA (Io)
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Package: 5,000
