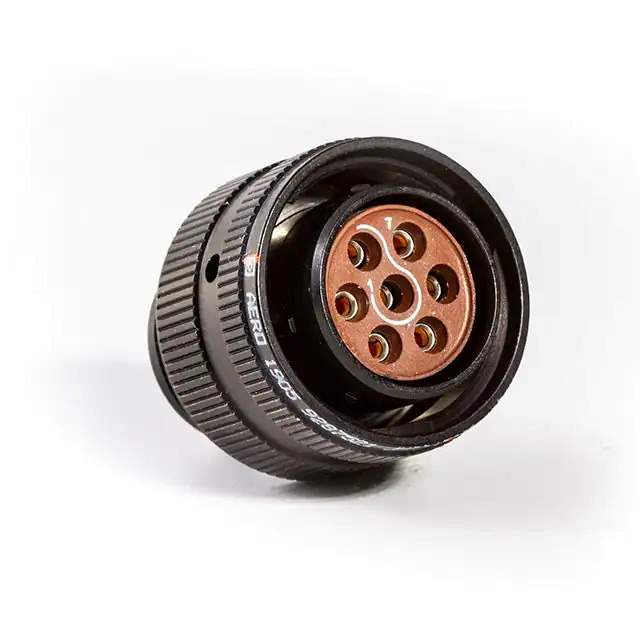

MS24266R12B12P6 Real Image
Same model may have multiple batches, images only for reference.

MS24266R12B12P6

Part No MS24266R12B12P6
Manufacturer Conesys
Catalog Circular Connectors - Assemblies
Description CONN PLUG MALE 12POS GOLD CRIMP
Datasheet
MS24266R12B12P6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Conesys
Series Military, MIL-DTL-26500
Package Box
Product Status Active
Connector Type Plug, Male Pins
Number of Positions 12 (Power)
Shell Size - Insert 12-12
Shell Size, MIL C
Mounting Type Free Hanging (In-Line)
Termination Crimp
Fastening Type Bayonet Lock
Orientation 6
Primary Material Metal
Shell Material Aluminum
Shell Finish Anodized
Contact Finish - Mating Gold
Ingress Protection Environment Sealed
Features Coupling Nut
Shielding Unshielded
Cable Opening 0.580" (14.73mm)
Temperature Range - Operating -55°C ~ 200°C
Contact Finish Thickness - Mating 50.0µin (1.27µm)
Insert Material Epoxy, Glass Filled
Base Product Number MS24266R12B
Standard Package 1 pcs
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 928124-MS24266R12B12P6
Ultra Librarian 3D Model Ultra Librarian MS24266R12B12P6 CAD Model

Description

The MS24266R12B12P6 is a circular connector assembly from the Military, MIL-DTL-26500 series.

  • Connector Type: plug
  • Contact Gender: male pins
  • Termination: crimp
  • Fastening Type: bayonet lock
  • Application: power connections
  • Positions: 12
  • Shell Size: 12-12
  • Shell Material: aluminum
  • Ingress Protection: environment sealed
  • Temperature Range: -55°C to 200°C
  • Manufacturer: Conesys
