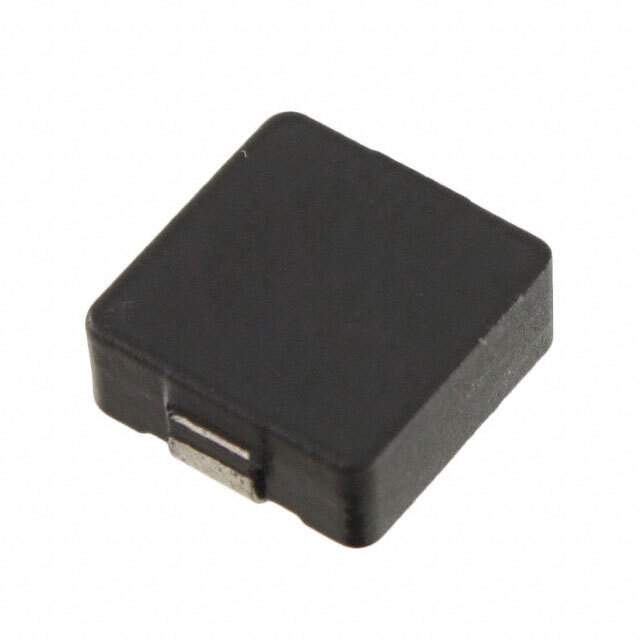

HCM1305-1R0-R Real Image
Same model may have multiple batches, images only for reference.

HCM1305-1R0-R

Part No HCM1305-1R0-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description High Current Power Inductors | FIXED IND 1UH 29A 2.42 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton - Electronics Division
Packaging Reel
Type Wirewound
Material - Core Iron Powder
Inductance 1μH
Tolerance ±20%
Current Rating (Amps) 29A
Current - Saturation 50A
Shielding Shielded
DC Resistance (DCR) 2.42mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.524" L x 0.480" W (13.30mm x 12.20mm)
Height - Seated (Maximum) 0.197"
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1178969-HCM1305-1R0-R
Manufacturer Homepage www.cooperbussmann.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HCM1305-1R0-R CAD Model

Description

The Eaton - Electronics Division electronic component with Win Source Part Number 1178969-HCM1305-1R0-R is a wirewound type inductor that comes in reel packaging.

  • Shielded type
  • Inductance: 1µH
  • Tolerance: ±20%
  • Core Material: iron powder
  • Current Saturation: 50A
  • DC Resistance (DCR): 2.42mOhm Max
  • Temperature Range: -55°C ~ 125°C
  • Base product number: not available.
  • Additional information: about the product is not available.
