Same model may have multiple batches, images only for reference.

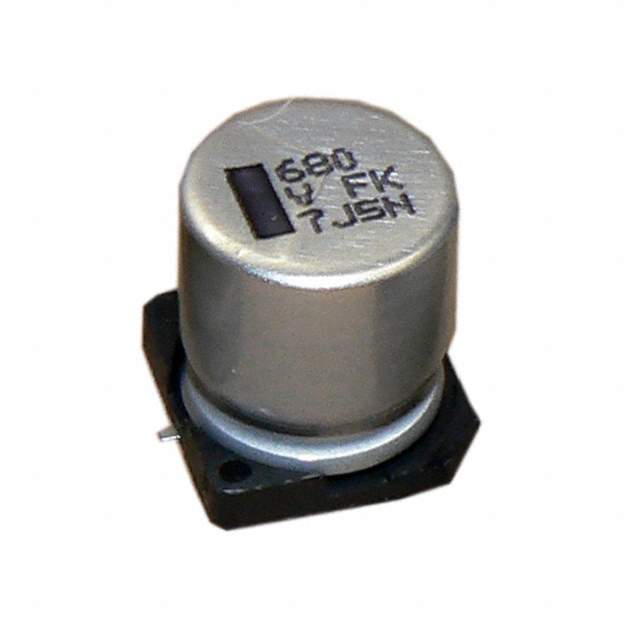

AFK476M2AH32T-F Real Image
Same model may have multiple batches, images only for reference.

AFK476M2AH32T-F

Part No AFK476M2AH32T-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 100V SMD / 47 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - SMD 320mOhm @ 100kHz 5000 Hrs @ 105°C
Datasheet
AFK476M2AH32T-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series AFK
Package Tape & Reel
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) 320mOhm @ 100kHz
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive, Bypass, Decoupling
Ripple Current @ Low Frequency 375 mA @ 120 Hz
Ripple Current @ High Frequency 500 mA @ 100 kHz
Impedance 320 mOhms
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.551" (14.00mm)
Surface Mount Land Size 0.531" L x 0.590" W (13.50mm x 15.00mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1338137-AFK476M2AH32T-F
Ultra Librarian 3D Model Ultra Librarian AFK476M2AH32T-F CAD Model

Description

The AFK series aluminum electrolytic capacitor is a high-quality capacitor designed for automotive, bypass, and decoupling applications.

  • Manufacturer: United Chemi-Con
  • Series: AFK
  • Product: AFK
  • Application: Automotive, Bypass, Decoupling
  • Capacitance: 47 µF
  • Voltage Rating: 100 V
  • Lifetime: 5000 Hours @ 105°C
  • ESR: 320mOhm @ 100kHz
  • Impedance: 320 mOhms
  • Polarization: Polar
  • Package: Radial, Can - SMD
  • Surface Mount Land Size: 0.531" L x 0.590" W (13.50mm x 15.00mm)
  • Mounting Type: Surface Mount
  • Height: 0.551" (14.00mm)
  • Standard Package: 200
  • AEC-Q200: Rated
