Same model may have multiple batches, images only for reference.

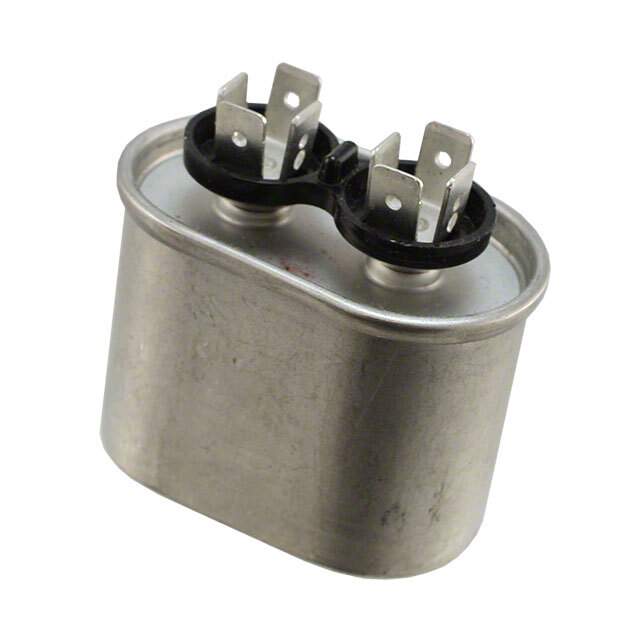

SFA37S7.5K156B Real Image
Same model may have multiple batches, images only for reference.

SFA37S7.5K156B

Part No SFA37S7.5K156B
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SFA37S7.5K156B Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SF
Package Bulk
Product Status Obsolete
Capacitance 7.5 µF
Tolerance ±10%
Voltage Rating - AC 370V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C ~ 70°C
Mounting Type Chassis Mount, Requires Holder/Bracket
Package / Case Radial, Can
Dimension 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip
Height - Seated (Max) 1.680" (42.67mm)
Termination Quick Connect, Disconnect
Lead Spacing 0.810" (20.57mm)
Applications Motor Run
Standard Package 126
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Win Source Part Number 1302449-SFA37S7.5K156B
Ultra Librarian 3D Model Ultra Librarian SFA37S7.5K156B CAD Model

Description

The SFA37S7.5K156B is a film capacitor from Cornell Dubilier Electronics (CDE) that is designed for motor run applications.

  • Capacitance: 7.5 µF
  • Voltage Rating (AC): 370V
  • Tolerance: ±10%
  • Dielectric Material: Polypropylene (PP), metallized
  • Package: Radial, can
  • Termination: Quick connect, disconnect
  • Temperature Range: -40°C ~ 70°C
  • Dimension: 2.160" L x 1.310" W (54.86mm x 33.27mm), lip
  • Packaging: Bulk
  • Standard Package: 126
  • Status: Obsolete
  • RoHS Compliant: No
