Same model may have multiple batches, images only for reference.

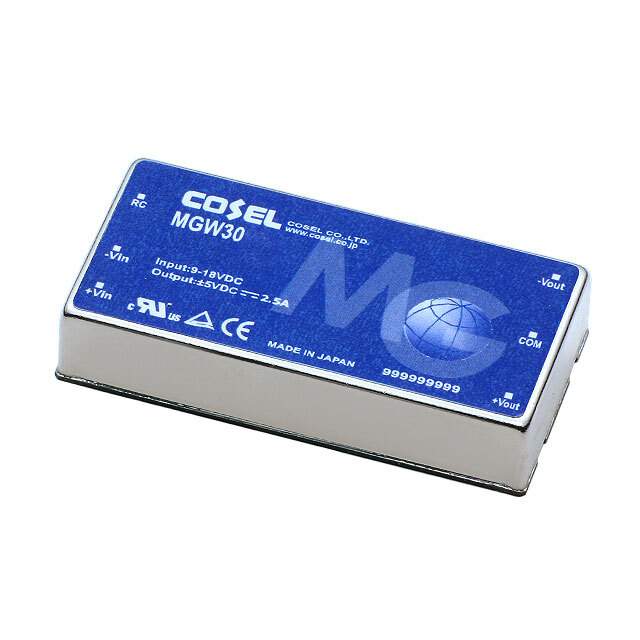

MGW302412 Real Image
Same model may have multiple batches, images only for reference.

MGW302412

Part No MGW302412
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V / Isolated Module DC DC Converter 2 Output 12V or 24V -12V 1.25A, 1.25A 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series MGW (30W)
Package Box
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V or 24V
Voltage - Output 2 -12V
Current - Output (Max) 1.25A, 1.25A
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Bridgeable, Remote On/Off, OCP, OVP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 91%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 9.9mm)
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1351376-MGW302412
Ultra Librarian 3D Model Ultra Librarian MGW302412 CAD Model

Description

The Cosel MGW302412 is a 30W isolated module DC/DC converter that is designed for use in ITE (Commercial) applications.

  • Power: 30W
  • Application: ITE (Commercial)
  • Voltage Isolation: 1.5 kV
  • Outputs: Two (12V or 24V and -12V)
  • Efficiency: 91%
  • Voltage Input Range: 18V to 36V
  • Mounting Type: Through Hole
  • Temperature Range: -40°C to 85°C
  • Size: 2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 9.9mm)
  • Package: Box
