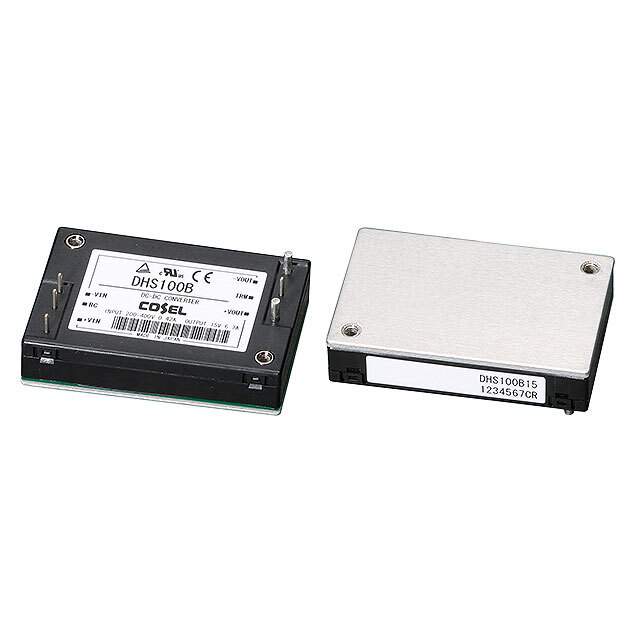

DHS100B24 Real Image
Same model may have multiple batches, images only for reference.

DHS100B24

Part No DHS100B24
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V / Module DC-DC 1-OUT 24V 4.2A 100.8W 6-Pin Brick
Datasheet
DHS100B24 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Cosel USA, Inc.
Series DHS
Type Bus Converter Module
Number of Outputs 1
Input Voltage MIN 200V
Voltage Input MAX 400V
Voltage - Output 1 24V
Current - Output (Maximum) 4.2A
Voltage - Isolation 3kV (3000V)
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP
Operating Temperature Range -40°C ~ 100°C (With Derating)
Efficiency 86%
Mounting Style Through Hole
Package 6-DIP Module
Dimension 2.30" L x 1.47" W x 0.50" H (58.4mm x 37.3mm x 12.7mm)
Win Source Part Number 793482-DHS100B24
Popularity Medium
Supply and Demand Status Balance
Family Name DHS100B
Introduction Date June 10, 2009
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian DHS100B24 CAD Model

Description

The Cosel USA, Inc. DHS series bus converter module is a through-hole mountable power supply.

  • Applications: ITE (Commercial)
  • Features: Remote On/Off, OCP, OTP, OVP
  • Package: 6-DIP Module
  • Voltage Isolation: 3kV (3000V)
  • Outputs: 1
  • Output Voltage: 24V
  • Maximum Output Current: 4.2A
  • Input Voltage: 200V to 400V
  • Efficiency: 86%
  • Package/Case Size: 2.30" L x 1.47" W x 0.50" H (58.4mm x 37.3mm x 12.7mm)
