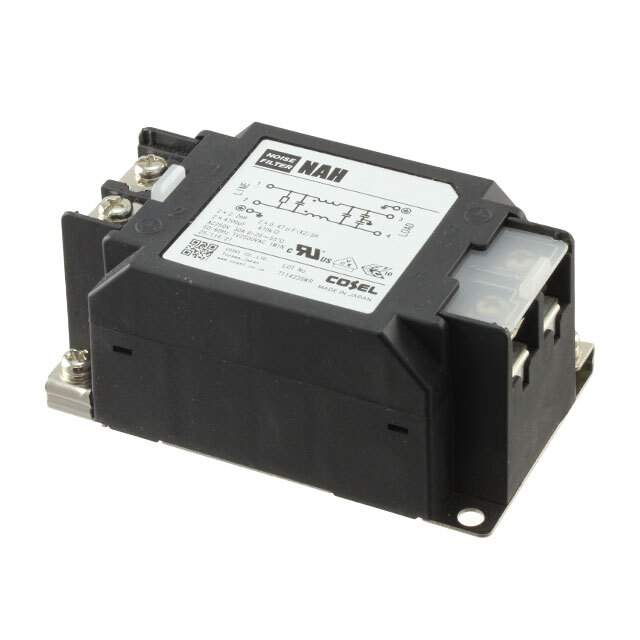

NAH-20-102 Real Image
Same model may have multiple batches, images only for reference.

NAH-20-102

Part No NAH-20-102
Manufacturer Cosel USA, Inc.
Catalog Power Line Filter Modules
Description LINE FILTER 250VDC/VAC 20A CHAS / Single Phase EMC/EMI Line Filter 20 A 250VAC Single Stage Terminal Block
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr Cosel USA, Inc.
Series NAH
Package Box
Filter Type Single Phase
Configuration Single Stage
Voltage - Rated DC 250V
Voltage - Rated AC 250V
Voltage - Rated AC (Phase to Ground/Neutral) 250 V
Current 20 A
Applications General Purpose
Approval Agency cURus, VDE
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Chassis Mount
Termination Style Terminal Block
Base Product Number NAH-20
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Other Names NAH-20-102-ND,1776-3288
Standard Package 1
Win Source Part Number 983774-NAH-20-102
Ultra Librarian 3D Model Ultra Librarian NAH-20-102 CAD Model

Description

The Cosel USA, Inc. NAH-20-102 is a single-phase single-stage power line filter module that comes with a 20A current rating.

  • Series: NAH
  • Application: General Purpose
  • Termination Style: Terminal Block
  • Package: Box
  • Voltage Rating (DC): 250V
  • Voltage Rating (AC): 250V
  • MSL Level: Not Applicable
  • HTSUS: 8548.00.0000
  • Standard Package: 1
  • Approvals: cURus and VDE
