Same model may have multiple batches, images only for reference.

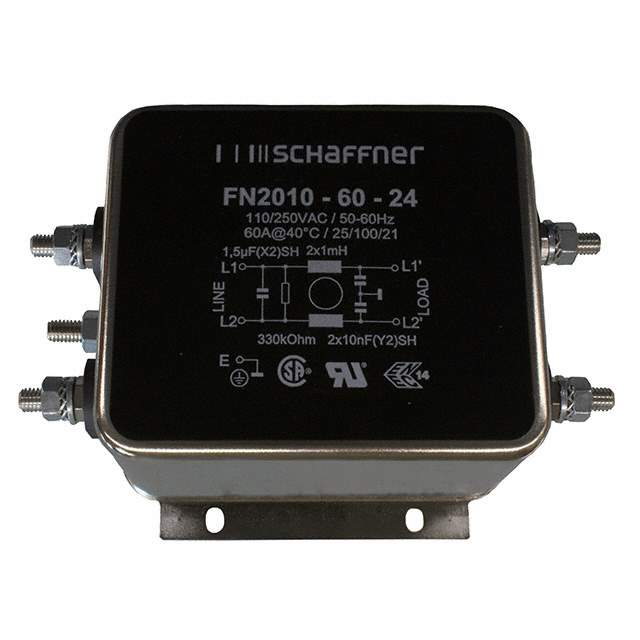

FN2010-60-24 Real Image
Same model may have multiple batches, images only for reference.

FN2010-60-24

Part No FN2010-60-24
Manufacturer Schaffner EMC Inc.
Catalog Power Line Filter Modules
Description LINE FILTER 250VAC 60A CHASS MNT
Datasheet
FN2010-60-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 9 Weeks
Features Single Phase EMC/EMI Line Filter 250VAC DC ~ 400Hz Single Stage Threaded Post (M6)
Manufacturer Schaffner EMC Inc.
Series FN 2010
Package Tray
Operating Temperature Range -25°C ~ 100°C
Mounting Chassis Mount
Family Name FN2010
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Other Part Number FN2010 -60 -24, 292-746, 800768, 817-1257, FN20106024
Quantity per package 5
Popularity High
Supply and Demand Status Balance
Win Source Part Number 919202-FN2010-60-24
Ultra Librarian 3D Model Ultra Librarian FN2010-60-24 CAD Model

Description

The FN 2010 series from Schaffner EMC Inc. is a single phase EMC/EMI line filter designed for chassis mount.

  • Part Number: FN2010-60-24
  • Mounting: Chassis Mount
  • Filter Type: Single Stage
  • Termination Style: Threaded Post (M6)
  • Voltage Rating: 250VAC DC ~ 400Hz
  • Operating Temperature: -25°C to 100°C
  • Packaging: Tray
  • Quantity per Package: 5
  • Alternative Part Numbers: FN2010 -60 -24, 292-746, 800768, 817-1257
