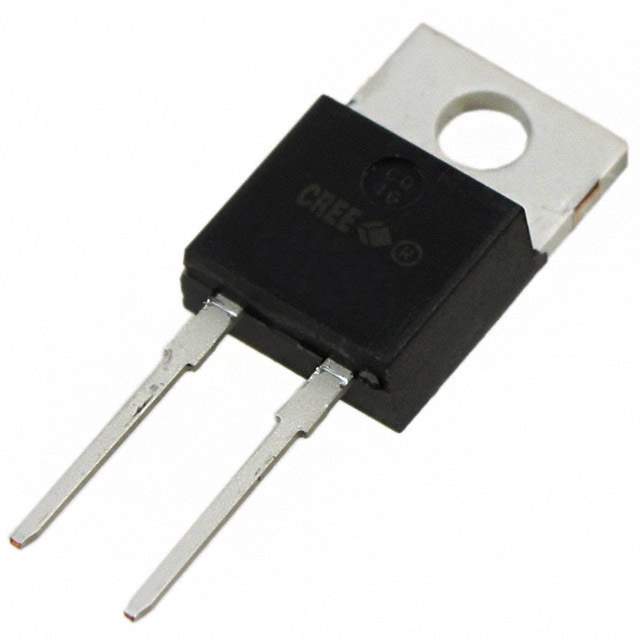

C3D08065I Real Image
Same model may have multiple batches, images only for reference.

C3D08065I

Part No C3D08065I
Manufacturer Cree/Wolfspeed
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 650V 8A TO220-2 / Diode Silicon Carbide Schottky 650 V 16.5A Through Hole TO-220-2 Isolated Tab
Datasheet
C3D08065I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Wolfspeed, Inc.
Packaging Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 650 V
Current - Average Rectified (Io) 16.5A
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 8 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 60 µA @ 650 V
Capacitance @ Vr, F 441pF @ 0V, 1MHz
Mounting Through Hole
Case / Package TO-220-2 Isolated Tab
Supplier Device Package TO-220-2 Isolated Tab
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number C3D08065
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 50
Win Source Part Number 1325574-C3D08065I
Ultra Librarian 3D Model Ultra Librarian C3D08065I CAD Model

Description

The Wolfspeed, Inc. electronic component, part number 1325574-C3D08065I, is a silicon carbide Schottky diode that falls under the category of discrete semiconductor products.

  • Current Rating: 16.5A
  • Voltage Rating: 650V
  • Reverse Recovery Time: 0ns
  • Capacitance Rating: 441pF
  • Temperature Range: -55°C to 175°C
