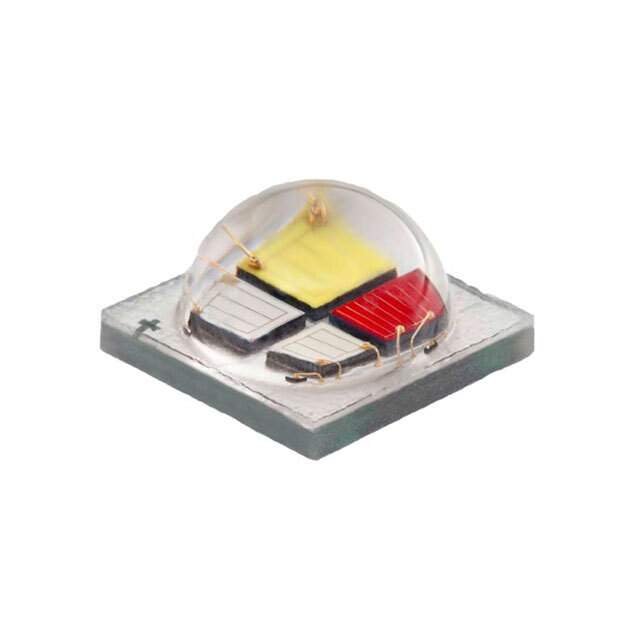

Same model may have multiple batches, images only for reference.

XMLCTW-A0-0000-00C3AAAA1

Name: XMLCTW-A0-0000-00C3AAAA1
Brand: CreeLED, Inc.
SKU: 1331966
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	XMLCTW-A0-0000-00C3AAAA1
Manufacturer	CreeLED, Inc.
Catalog	LED Lighting - Color
Description	LED XLAMP XML RGBW SMD / LED Lighting Color XLamp® XM-L Red, Green, Blue, White - Cool (RGBW) 625nm Red, 528nm Green, 458nm Blue, 6850K White 2020 (5050 Metric)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Lighting - Color
Manufacturer	CreeLED, Inc.
Packaging	Reel - TR
Product Status	Obsolete
Color	Red, Green, Blue, White - Cool (RGBW)
Wavelength	625nm Red, 528nm Green, 458nm Blue, 6850K White
Current - Test	350mA Red, 350mA Green, 350mA Blue, 350mA White
Voltage - Forward (Vf) (Typ)	2.25V Red, 3.3V Green, 3.1V Blue, 3.1V White
Lumens/Watt @ Current - Test	85 lm/W Red, 87 lm/W Green, 25 lm/W Blue, 101 lm/W White
Current - Max	1A Red, 1A Blue, 1A Green, 1A White
Luminous Flux @ Current/Temperature	67lm Red, 101lm Green, 27lm Blue, 110lm White
Temperature - Test	25°C
Viewing Angle	130°
Mounting	Surface Mount
Case / Package	2020 (5050 Metric)
Supplier Device Package	SMD
Size / Dimension	0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max)	0.124" (3.15mm)
Thermal Resistance of Package	3.5°C/W
Base Product Number	XMLCTW
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Other Part Number	XMLCTW-A0-0000-00C3AAAA1TR,XMLCTW-A0-0000-00C3AAAA1-ND,XMLCTW-A0-0000-00C3AAAA1CT,XMLCTW-A0-0000-00C3AAAA1DKR
Standard Package	1,000
Win Source Part Number	1331966-XMLCTW-A0-0000-00C3AAAA1
Ultra Librarian 3D Model	Ultra Librarian XMLCTW-A0-0000-00C3AAAA1 CAD Model

Alternative Products

Description

The XMLCTW-A0-0000-00C3AAAA1 is a surface mount LED manufactured by CreeLED, Inc.

Category: Optoelectronics>LED Lighting - Color
Packaging: Reel - TR
Popularity: 76%
REACH Unaffected: Yes
Viewing Angle: 130 degrees
Thermal Resistance: 3.5 degrees Celsius per watt
