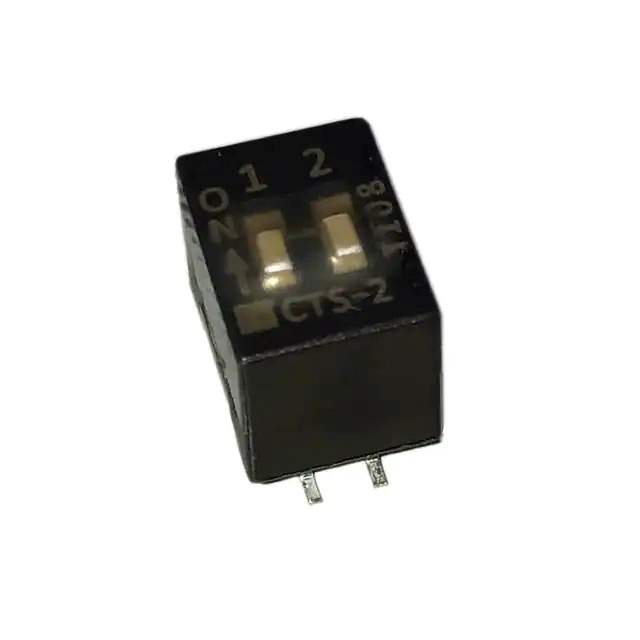

Same model may have multiple batches, images only for reference.

204-2STR

Name: 204-2STR
Brand: CTS Electrocomponents
SKU: 905863
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	204-2STR
Manufacturer	CTS Electrocomponents
Catalog	DIP Switches
Description	SWITCH SLIDE DIP SPST 50MA 24V / Dip Switch SPST 2 Position Surface Mount Slide (Standard) Actuator 50mA 24VDC
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - DIP Switches
Mfr	CTS Electrocomponents
Series	204
Package	Tape & Reel
Product Status	Active
Circuit	SPST
Number of Positions	2
Current Rating (Amps)	50mA
Voltage Rating	24VDC
Actuator Type	Slide (Standard)
Actuator Level	Raised
Contact Finish	Gold
Height Above Board	0.394" (10.00mm)
Mounting Type	Surface Mount
Termination Style	Gull Wing
Pitch	0.100" (2.54mm), Full
Washable	Yes
Features	Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating	-55°C ~ 85°C
Body Material	Plastic
Length	0.286" (7.26mm)
Electrical Life	5,000 Cycles
Standard Package	350 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9065
California Prop 65	Warning Information
Win Source Part Number	905863-204-2STR
Ultra Librarian 3D Model	Ultra Librarian 204-2STR CAD Model

Alternative Products

Description

The 905863-204-2STR is a DIP switch from the 204 series.

Product Name: 905863-204-2STR
Manufacturer: CTS Electrocomponents
Series: 204
Positions: 2
Pitch: 0.100" (2.54mm)
Termination Style: Gull Wing
Terminals: Epoxy Sealed with Tape Seal
Contact Finish: Gold
Package: Tape and Reel
Package Quantity: 350
Material: Plastic
Voltage Rating: 24VDC
Height Above Board: 0.394" (10.00mm)
Length: 0.286" (7.26mm)
Circuit: SPST
Actuator Type: Slide
Electrical Life: 5,000 cycles
Washable: Yes
Operating Temperature: -55°C to 85°C
Status: Active
