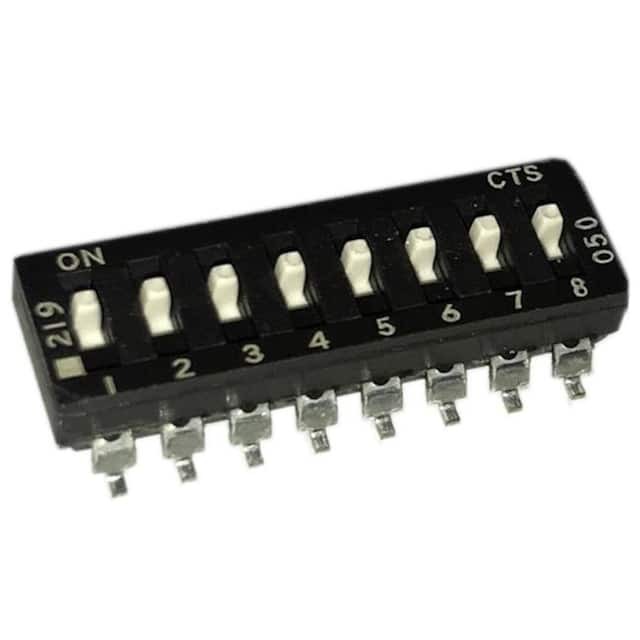

219-8ES
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 219
Package Tube
Product Status Active
Circuit SPST
Number of Positions 8
Current Rating (Amps) 100mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.184" (4.67mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Features Epoxy Sealed Terminals
Temperature Range - Operating -55°C ~ 85°C
Length 0.858" (21.80mm)
Electrical Life 2,000 Cycles
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 905936-219-8ES
Ultra Librarian 3D Model Ultra Librarian 219-8ES CAD Model

Description

The 219 series DIP switch is a gull wing termination style switch designed for various applications.

  • Number of Positions: 8
  • Pitch: 0.100" (2.54mm)
  • Features: epoxy sealed terminals
  • Contact Finish: gold
  • Voltage Rating: 20VDC
  • Mounting: surface mountable
  • Package: tube
  • Current Rating: 100mA
  • Temperature Range: -55°C to 85°C for operating
  • Manufacturer: CTS Electrocomponents
  • Market Status: currently active
