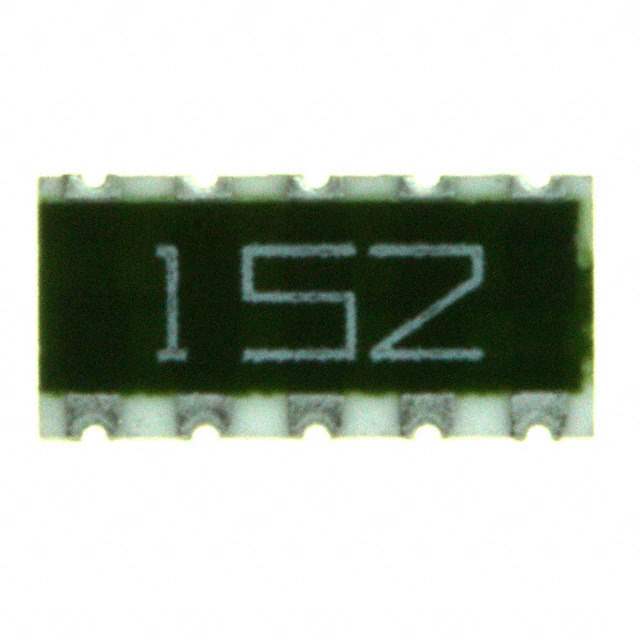

745C101223JP Real Image
Same model may have multiple batches, images only for reference.

745C101223JP

Part No 745C101223JP
Manufacturer CTS Resistor Products
Catalog Resistor Networks, Arrays
Description RES ARRAY 8 RES 22K OHM 2512 / 22k Ohm ±5% 63mW Power Per Element Bussed 8 Resistor Network/Array ±250ppm/°C 2512 (6432 Metric), Concave, Long Side Terminals
Datasheet
745C101223JP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr CTS Resistor Products
Series 745
Package Tape & Reel
Product Status Active
Circuit Type Bussed
Resistance (Ohms) 22k
Tolerance ±5%
Number of Resistors 8
Number of Pins 10
Power Per Element 63mW
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Applications DDR SDRAM, DRAM, MDDR
Mounting Type Surface Mount
Package / Case 2512 (6432 Metric), Concave, Long Side Terminals
Size / Dimension 0.252" L x 0.126" W (6.40mm x 3.20mm)
Height - Seated (Max) 0.028" (0.70mm)
Base Product Number 745C101
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
California Prop 65 Warning Information
Win Source Part Number 857631-745C101223JP
Ultra Librarian 3D Model Ultra Librarian 745C101223JP CAD Model

Description

The 857631-745C101223JP is a resistor network in the 745 series.

  • Package: Tape and reel
  • Size/Dimension: 0.252" L x 0.126" W (6.40mm x 3.20mm)
  • Application: DDR SDRAM, DRAM, and MDDR
  • Height: 0.028" (0.70mm)
  • Standard Package: 4,000 pcs
  • Tolerance: ±5%
  • Temperature Coefficient: ±250ppm/°C
  • Resistance: 22k ohms
  • Circuit Type: Bussed
  • Number of Resistors: 8
  • Number of Pins: 10
  • Power Rating per Element: 63mW
  • Mounting Type: Surface mount
  • Operating Temperature: -55°C to 125°C
